AC/DC power supply EK-PSUD12

DIN railadjustablefor automation

Product overview

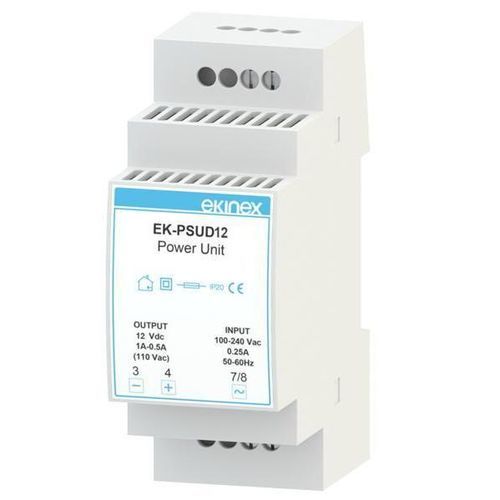

The EK-PSUD12 is a DIN-rail switching power supply with wide-range AC/DC input. Supplied in a UL94V-0 flame-retardant plastic housing occupying 2 modular units (1 UM = 18 mm), it is designed for installation on 35 mm profile rails (EN 60715). The unit integrates thermal, overload and short-circuit protection. Output voltage is adjustable via a trimmer in the range 23.3 to 28 Vdc.

Connections

• Screw terminals for mains input
• Screw terminals for load outputs
• Screw terminals for output voltage adjustment (trimmer access)

Technical Data

• Input voltage: 100 to 240 Vac (50–60 Hz) or 110 to 350 Vdc
• Input current rating: 0.20 A @115 Vac / 0.22 A @230 Vac
• Input protection: fuse
• Output voltage: adjustable 23.3 to 28 Vdc (adjustment by trimmer)
• Output current @115 Vac: 0.5 A
• Hold-up time: 15 ms @230 Vac, 7 ms @115 Vac
• Ripple: < 50 mV rms
• Electronic protections: thermal, overload, short-circuit
• Power dissipation: 4 W @230 Vac
• Operating temperature: -10 to +60 °C
• Relative humidity (non-condensing): 0 to 95%
• Number of modular units: 2 (1 UM = 18 mm)
• Housing: flame-retardant plastic UL94V-0
• Terminal connections: screw terminal block, max. cable 2.5 mm²
• Protection class: IP20
• Dimensions (WxHxD): 35.5 x 90 x 60 mm
• Weight: 110 g
• Standards: CEI EN 64-8 PELV/SELV, CEI EN 60950-1, CEI EN 61000-6-1, CEI EN 61000-6-3, CEI EN 55011, CEI EN 55014
• Suitable for installation on 35 mm profile rails (EN 60715)

Functions / Features

• Output voltage adjustable from 23.3 to 28 Vdc via a trimmer (adjustable with a star-shaped screwdriver)
• Particularly suitable for powering ekinex Delgo EK-DEL-... modules for supervision and control of KNX standard home automation systems

Configuration and commissioning

• No configuration required — device is ready for installation and connection

Technical specifications

• Product title on page: "Switching power supply 230Vac 12Vdc 2A"
• Model code: EK-PSUD12
• Input: 100–240 Vac (50–60 Hz) or 110–350 Vdc
• Input current: 0.20 A @115 Vac / 0.22 A @230 Vac
• Input protection: fuse
• Output: adjustable 23.3–28 Vdc (trimmer)
• Output current @115 Vac: 0.5 A
• Hold-up time: 15 ms (@230 Vac) / 7 ms (@115 Vac)
• Ripple < 50 mV rms
• Protections: thermal, overload, short-circuit
• Power dissipation: 4 W @230 Vac
• Operating temperature: -10 to +60 °C
• Relative humidity: 0–95% non-condensing
• Number of modular units: 2 (1 UM = 18 mm)
• Housing: UL94V-0 flame-retardant plastic
• Terminal block: screw terminals, max cable 2.5 mm²
• Protection class: IP20
• Dimensions: 35.5 x 90 x 60 mm
• Weight: 110 g
• Standards: CEI EN 64-8 PELV/SELV, CEI EN 60950-1, CEI EN 61000-6-1, CEI EN 61000-6-3, CEI EN 55011, CEI EN 55014
• Mounting: suitable for 35 mm profile rails (EN 60715)
