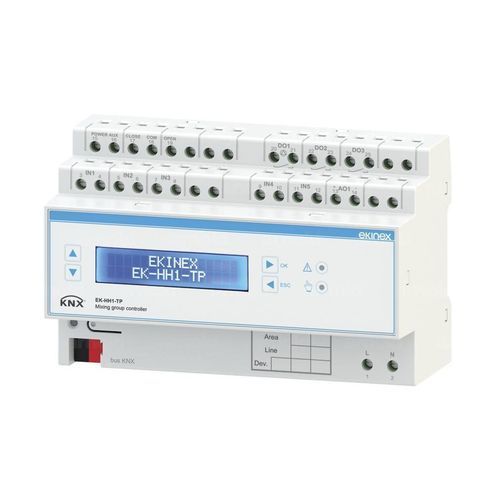

DIN rail heating controller EK-HH1-TP

for heating and coolingfor underfloor heatingfor valves

Description
The Ekinex® EK-HH1-TP mixing actuator/controller enables control of a hydronic mixing group by driving a mixing valve servo (3-point floating or 0–10 V), controlling a pump/circulator and acquiring supply and return fluid temperatures plus external air temperature. Supply temperature can be regulated in fixed setpoint mode, with external climate compensation, or with external compensation and internal-condition recalibration. Regulation modes are selectable separately for heating and cooling. The device is particularly suited to underfloor and ceiling radiant heating/cooling applications in combination with Ekinex® room thermostats with integrated temperature and humidity sensors. The membrane keypad allows manual control and includes status LEDs; the LCD displays and configures main operating parameters. The unit incorporates an integrated KNX bus communication module and is designed for 35 mm DIN-rail mounting. Bus KNX provides electronic power; mains 230 Vac is additionally required for actuator outputs.

Technical data
Power supply

• Control load supply: 230 Vac 50/60 Hz
• Electronics supply: 30 Vdc via KNX bus

Inputs

• 3 analog inputs dedicated to NTC 10 kΩ temperature probes at 25°C
• 2 configurable inputs: analog (NTC 10 kΩ at 25°C) or potential-free digital

Outputs

• 1 output for 3-point floating actuator control, 1 A, 250 Vac
• 1 output for 0–10 V actuator control (high-impedance input connection)
• 3 auxiliary outputs, relays 10(5) A, 250 Vac

Supply contents

• Includes one terminal for bus line connection

Functions / Features

• Plastic enclosure
• Programming button and LED on front panel
• Membrane keypad with LEDs indicating output status
• Manual/automatic operation selector button
• Bus line connection via KNX terminal
• Inputs, outputs and 230 Vac connections via screw terminals
• Climatic class 3K5 and mechanical class 3M2 (EN 50491-2)
• Overvoltage category III and pollution degree 2 (EN 60664-1)
• 35 mm DIN-rail mounting (EN 60715)
• 8 modular units (1 MU = 18 mm)
• Protection degree IP20 (installed) — Weight 380 g

Configuration and commissioning
Detailed parameter descriptions are available in the device application manual. ETS5 or later is required for configuration and commissioning. ETS application program: APEKHH1TP## (## = version).

Characteristics / Technical specifications

• Model: EK-HH1-TP
• Communication protocol: KNX (integrated bus module)
• Control supply: 230 Vac 50/60 Hz
• Electronics supply: 30 Vdc via KNX bus
• Inputs: 3 NTC 10 kΩ + 2 configurable (analog/digital)
• Outputs: 1 three-point actuator (1 A, 250 Vac), 1 x 0–10 V output, 3 relays 10(5) A 250 Vac
• Mounting: 35 mm DIN-rail
• Size: 8 modular units (1 MU = 18 mm)
• Protection rating: IP20 (installed)
• Weight: 380 g
• Classifications: climatic 3K5, mechanical 3M2, overvoltage III, pollution degree 2
