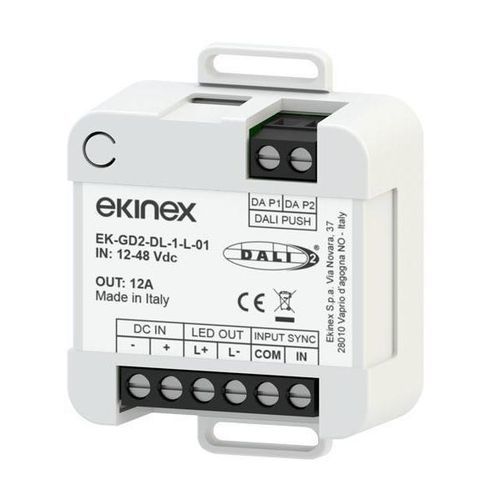

Light dimmer module EK-GD2-DL-1-L-01

Description
The EK-GD2-DL-1-L-01 is a very low-voltage PWM dimmer designed for controlling single-colour LED strips and PWM-dimmable LED loads. It supports 12 Vdc, 24 Vdc and 48 Vdc supplies (operating range 8 Vdc–53 Vdc) and offers multiple control interfaces. Operating modes are selectable via onboard dip-switches.

Control options

• DALI1 or DALI2 bus
• Push-button control (N/O) at mains voltage or 12/24/48 V
• 0–10 V or 1–10 V analogue signal (active or passive actuator)
• 47 kΩ linear potentiometer
• Presence sensor

Technical data
Inputs

• Constant input voltage: 12/24/48 Vdc
• Supply voltage range: min 8 Vdc – max 53 Vdc
• Control interfaces: DALI2 / 0–10 V / 1–10 V / push-button / potentiometer / switch / sensor / phase cut

Outputs

• PWM voltage output: 12/24/48 Vdc
• Output current: 12 A
• Number of outputs: 1
• Nominal power: 120 W @12 V, 288 W @24 V, 576 W @48 V
• Load type: single-colour dimming
• PWM frequency: 390 Hz – 3000 Hz

Dimming

• PWM frequency configurable between 390 Hz and 3000 Hz

Functions / Features

• Isolated push input; supports active/passive potentiometer, 0–10 V/1–10 V, switch, sensor, phase-cut and DALI2 DT6 (including high compatibility for voltage-current converters)
• Master/slave functionality
• Programmable timed start-up
• Menu for minimum dimming change, fade ON/OFF, curve type and frequency setup (flicker mitigation) accessible via input button
• Signalling LED to verify correct power supply
• Protections: polarity reversal, short circuit, open circuit, voltage spikes
• UL-certified printed circuit board

Configuration and commissioning
Assembly, electrical connection, configuration and commissioning must be performed by qualified personnel in accordance with applicable standards and regulations.

Specifications / technical data

• Product type: very low-voltage PWM dimmer for single-colour LED loads
• Supported supply voltages: 12 Vdc, 24 Vdc, 48 Vdc (operating range 8 Vdc–53 Vdc)
• Output current: 12 A; nominal power: 120 W @12 V, 288 W @24 V, 576 W @48 V
• Control interfaces: DALI1/DALI2, 0–10 V, 1–10 V, push-button, potentiometer, switch, sensor, phase cut
• PWM frequency configurable: 390 Hz–3000 Hz (flicker mitigation settings available)
• Single output channel
• Onboard dip-switches for selecting operating modes
• Master/slave capability and programmable timed start-up
• Protection features: polarity reversal, short circuit, open circuit, voltage spikes
