KNX output module EK-FA1-TP

Description

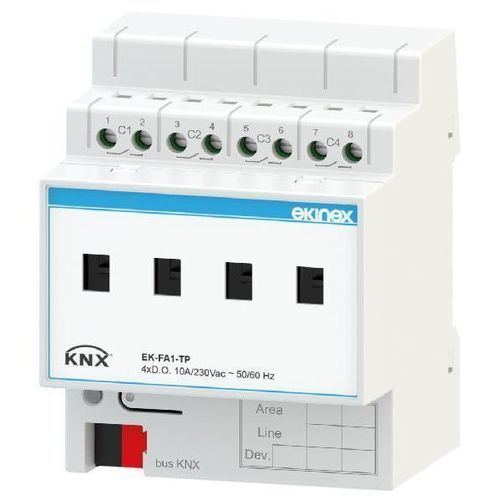

The Ekinex® EK-FA1-TP is a KNX binary output module designed to independently control four groups of electrical loads. The device provides potential-free relay outputs with bistable relays that retain their state after bus power loss. Front levers indicate channel status and allow manual control with a tool in emergency situations. The module includes an integrated KNX communication interface and is intended for mounting on a 35 mm DIN rail. Power is supplied via the KNX bus; no auxiliary power required.

Technical data
Supply

• Voltage: 30 Vdc via KNX bus
• Current consumption from bus: < 12 mA
• Power from bus: 360 mW

Outputs

• Number: 4 (bistable relays)
• Rated voltage (Un): 100-230 Vac, 50/60 Hz
• Rated current (In): max 10 A (both @100 Vac and @230 Vac)
• Switched power: 1000 W @100 Vac - 2200 W @230 Vac

Supply contents
The supply includes a terminal for bus line connection.

Functions / Features

• Plastic enclosure
• Programming push-button and LED on the front
• KNX bus connection via terminal
• Load connections via screw terminals
• Climatic class 3K5 and mechanical class 3M2 (EN 50491-2)
• Overvoltage category III (EN 60664-1)
• Pollution degree 2 (IEC 60664-1)
• Mounting on 35 mm DIN rail (EN 60715)
• Device width: 4 modular units (1 MU = 18 mm)
• Protection degree: IP20 (device installed)
• Weight: 205 g

Commissioning and configuration
Detailed parameter descriptions are available in the device application manual. ETS5 or later is required for configuration and commissioning. Application program for ETS: APEKFA1TP##.knxprod (## = version).

Technical specifications

• Model: EK-FA1-TP
• Bus interface: integrated KNX
• Operating voltage: 30 Vdc (KNX bus)
• Consumption: < 12 mA from bus
• Power from bus: 360 mW
• Outputs: 4 bistable relays
• Maximum current per channel: 10 A
• Output voltage: 100-230 Vac, 50/60 Hz
• Switched power per channel: 1000 W @100 Vac / 2200 W @230 Vac
• Mounting: 35 mm DIN rail
• Modular size: 4 MU (1 MU = 18 mm)
• Protection rating: IP20
• Weight: 205 g
