Description

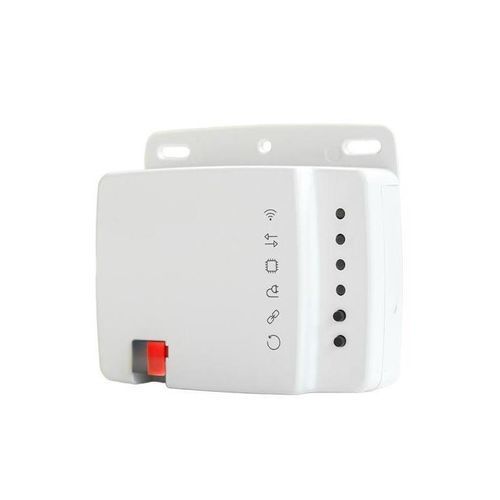

Ekinex provides certified KNX integration for HVAC systems. The EK-AI6-TP KNX VRF control interface offers bidirectional communication with Inverter/VRF indoor units using protocols developed and validated in cooperation with HVAC manufacturers. Integration between the KNX building automation system and the VRV/VRF air conditioning unit is plug-and-play: no adapter or external power supply is required. Data exchange is bidirectional with confirmed actions and states and includes error detection.

Available controls

• ON/OFF
• Mode (Cool, Heat, Auto, Dry, Fan)
• Fan speed
• Temperature setpoint
• Room temperature feedback
• Diagnostics
• Energy consumption monitoring

Connections

• KNX port with standard connector
• Terminal for direct connection to the Inverter/VRF indoor unit
• Terminal for additional digital inputs

Supply
The package includes a terminal for connection to the KNX bus, a terminal for additional digital inputs and a cable for connection to the Inverter/VRF indoor unit.

Code table
Code / Type
EK-AI6-TP-DA0 / VRF control interface with KNX communication (Daikin Residential)
EK-AI6-TP-DA1 / VRF control interface with KNX communication (Daikin Sky Air / VRV)
EK-AI6-TP-LGE / VRF control interface with KNX communication (LG)
EK-AI6-TP-MEL / VRF control interface with KNX communication (Mitsubishi Electric)
EK-AI6-TP-PA0 / VRF control interface with KNX communication (Panasonic RAC Domestic)
EK-AI6-TP-PAN / VRF control interface with KNX communication (Panasonic PACi)
EK-AI6-TP-SA2 / VRF control interface with KNX communication (Samsung NASA)
EK-AI6-TP-TOS / VRF control interface with KNX communication (Toshiba)

Functions / Features

• Control of multiple unit parameters
• Error detection during communication
• LED status indicators
• Connection to bus line via KNX terminal
• 3 configurable digital inputs
• Power supply via KNX bus

Configuration and commissioning
ETS application for configuring the device's KNX functions.

Note
The device is available with communication interfaces for manufacturers such as Daikin, Mitsubishi Electric, Toshiba, Panasonic, LG, Samsung and others. Some control and monitoring functions may be absent or limited depending on specific VRF/VRV models from each manufacturer.
