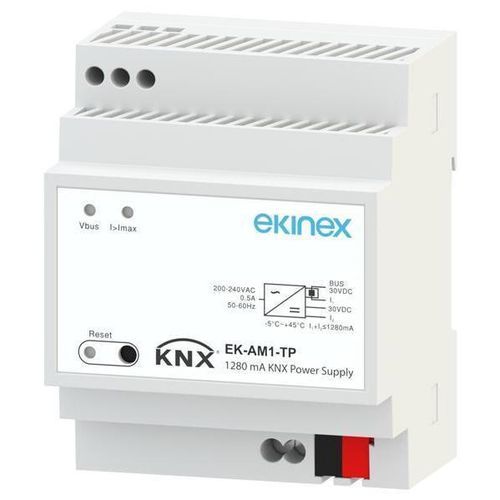

AC/DC power supply EK-AM1-TP

DCDIN railregulated

Overview
The Ekinex EK-AM1-TP power supply provides and monitors the 30 Vdc required for KNX bus operation. An internal coil decouples the power supply from the bus line. The output includes overload and short-circuit protection. An auxiliary 30 Vdc output is available; the combined current of both outputs (bus line + auxiliary) must not exceed 1280 mA. The device supports short mains interruptions up to 200 ms.

Technical data

• Model: EK-AM1-TP
• Supply voltage: 230 Vac, 50/60 Hz
• Power consumption: 39 W
• Losses: < 3 W
• Bus line voltage: 30 Vdc +1/-2 Vdc (SELV)
• Auxiliary output voltage: 30 Vdc
• Nominal current (total outputs): 1280 mA
• Buffer time / supports short mains interruptions: 200 ms

Features

• Plastic housing
• Connection to bus line via KNX terminal
• Auxiliary power connection via dedicated screw terminals
• Power supply and mains connection via screw terminals
• Overload and short-circuit protection on outputs
• Coil decoupling between power supply and bus line
• Degree of protection IP20 (device installed)
• Climatic classification 3K5 and mechanical classification 3M2 (EN 50491-2)
• Pollution degree 2 (IEC 60664-1)
• Safety class I
• Mounting on 35 mm DIN rail (EN 60715)
• Device width: 4 modular units (1 UM = 18 mm)
• Weight: 320 g

Configuration and commissioning
The power supply does not require configuration via ETS®. The application file APEKAM1TP ##.knxprod (## = version) is available to add the device to an ETS project. To commission, apply mains power to the input line feeding the device; the green LED marked "Vbus" indicates normal operation.

Model / Ordering

• Model: EK-AM1-TP
• Manufacturer: Ekinex
