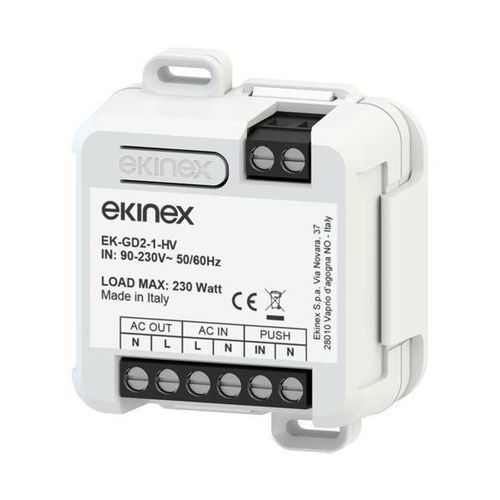

Light dimmer module EK-GD2-1-HV

Description
The EK-GD2-1-HV is a single-channel phase-cut dimmer for controlling brightness of LED and halogen lighting on 90–230 Vac 50/60 Hz supplies. Designed for installation in junction boxes, on walls or DIN rails, it supports up to 230 W output (see Note for electronic loads).

Connections
Screw terminals for control, supply and loads; non-isolated N.O. pushbutton input for control.

Technical data

• Single-channel dimmer with phase-cut output
• Supply range: 90–230 Vac 50/60 Hz
• Maximum output power: 230 W
• Control inputs: non-isolated N.O. pushbutton
• Maximum resistive load: 1 A
• Conductor diameter: 12–30 AWG (0.05–2.5 mm²)
• Storage temperature: -40 °C to 60 °C

Note
For electronic loads and LED lamps consider reducing the maximum usable power to approximately half the nominal value to ensure reliable operation.

Functions / Features

• Plastic housing
• Device suitable for free installation in junction boxes or on walls
• Mounting on 35 mm DIN rail (code holder included)
• Protection degree IP10 (device installed)

Functions

• Dimming up to complete switch-off (dim-to-dark)
• Minimum brightness level: 1%
• Optimised output curve for smooth dimming

Configuration and commissioning
Screw terminals for control, supply and loads enable straightforward wiring; device settings and mounting accessories included for rapid commissioning.

Caractéristiques / spécifications techniques

• Model: EK-GD2-1-HV
• Type: single-channel phase-cut dimmer
• Supply range: 90–230 Vac 50/60 Hz
• Maximum output power: 230 W (product page also mentions up to 220 W in some places)
• For electronic loads/LEDs: consider maximum power halved from nominal value
• Control inputs: non-isolated N.O. pushbutton
• Maximum resistive load: 1 A
• Conductor diameter: 12–30 AWG (0.05–2.5 mm²)
• Minimum brightness level: 1%
• Storage temperature: -40 °C to 60 °C
• Protection degree (installed): IP10
• Mounting: free installation in junction boxes or on wall, or on 35 mm DIN rail (code holder included)
• Housing: plastic
