KNX input module EK-CA1-TP

Description

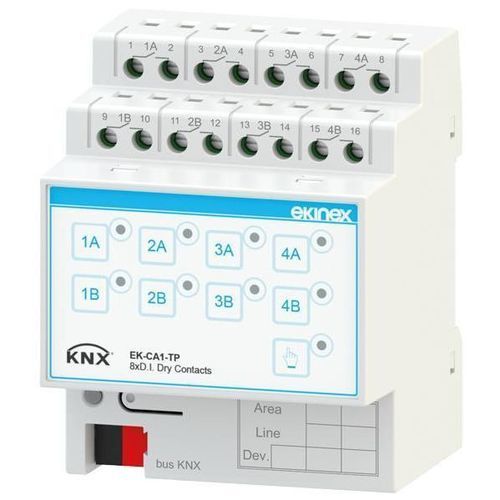

The Ekinex EK-CA1-TP is a DIN-rail input module with 8 independent analog/binary channels for interfacing potential-free contacts or passive NTC temperature sensors to a KNX bus. It enables command and status acquisition from conventional switches, push-buttons or non-communicating sensors and converts these signals into KNX telegrams. The input interrogation voltage is generated internally. The device includes an integrated KNX communication module and is powered by the KNX bus (no auxiliary supply required).

Technical data (summary)

• Supply: 30 Vdc via KNX bus
• Current draw from bus: < 13 mA
• Power on bus: 320 mW
• Inputs: 8 independent channels
• Input interrogation voltage: < 11 V
• Input interrogation current: < 5 mA

Supply
Delivery includes a terminal for connection to the KNX bus line.

Functions / Features

• On/off control of single or grouped loads
• Detection of signalling contacts (safety devices, alarms, etc.)
• Scene recall and storage
• Transmission on bus of measured values (temperature, brightness, etc.)
• Forced operation (lock)
• Pulse and actuation counting
• Dimming control for luminaires
• Control of blinds and shutters (roller shutters, venetian blinds, curtains, etc.)
• Ambient air temperature measurement via passive temperature probe (NTC 10 kΩ at 25 °C) with option to send value on bus
• Room temperature control: 2-point (on/off) or proportional (PWM or continuous)
• 4 logical functions (AND, OR, XOR) with 4 logical input objects each
• Plastic enclosure
• Programming push-button and LED on front
• Membrane keypad with input status LEDs
• Bus connection via KNX terminal
• Input connection via screw terminals
• Mounting on 35 mm DIN rail (EN 60715)
• Device width: 4 modular units (1 MU = 18 mm)
• Protection degree: IP20 (device installed)
• Weight: 145 g

Configuration and commissioning
Configuration and commissioning require ETS5 or later. ETS application program: APEKCA1TP## (## = version). Detailed parameter descriptions are available in the device application manual.

Characteristics / technical specifications

• Brand: Ekinex
• Model: EK-CA1-TP
• Type: 8-channel analog/binary input for KNX bus
• Supply: 30 Vdc via KNX bus
• Bus consumption: < 13 mA
• Power on bus: 320 mW
• Inputs: 8 independent channels
• Input interrogation voltage: < 11 V
• Input interrogation current: < 5 mA
• Compatible temperature probe: NTC 10 kΩ at 25 °C
• Mounting: 35 mm DIN rail
• Width: 4 modular units (1 MU = 18 mm)
• Protection rating: IP20
• Weight: 145 g
