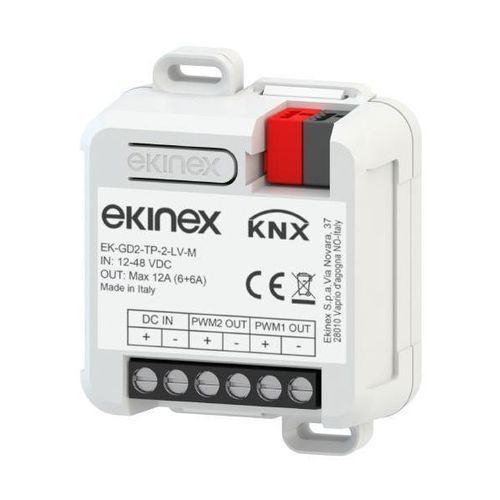

Light dimmer module EK-GD2-TP-2-LV-M

Description
The EK-GD2-TP-2-LV-M is a KNX 2-fold dimmer for LED loads, providing PWM brightness control optimized for dimmable and monochromatic LED strips. It integrates a SELV 30 Vdc KNX communication module and is KNX certified. The device is intended for DIN-rail or flush-mounted installation and supports parallel connection of outputs to increase total output power.

Technical data
Input

• Constant input voltage: 12/24/48 Vdc
• Supply voltage range: 10.8 Vdc – 52.8 Vdc
• Maximum input current: 12 A

Outputs

• PWM voltage output: 12/24/48 Vdc
• Output current: 6 A per channel (up to 12 A with two channels in parallel)
• Nominal power per channel: 72 W (@12 Vdc), 144 W (@24 Vdc), 288 W (@48 Vdc)

Dimming

• PWM dimming frequency: adjustable from 250 Hz to 6 kHz
• Dimming range: 1–100%

Supply

• Supply terminal includes connection for KNX bus

Functions / Features

• ON/OFF control and independent or grouped intensity adjustment for lighting circuits
• Selectable PWM frequency via ETS (250 Hz – 6 kHz)
• Configurable fade-in/fade-out times, min/max brightness and linear/logarithmic curves via ETS
• Soft or instant ON/OFF with programmable delays
• Outputs can be paralleled to increase power
• Behaviour after power restoration configurable; settings downloadable via ETS
• Channels configurable as independent, paralleled or copy from another channel via ETS
• Lock, forced operation, staircase lighting, scenarios, night mode, counters and logic functions per channel (configurable from ETS)
• Power-failure alarm
• Auxiliary output function via external relay with status reporting over KNX
• Installer mode (KNX bus active): press programming button ~2 s to toggle programming LED and load flashing (~1 s)

Environmental conditions and other characteristics

• Operating temperature: -20 °C to +40 °C
• Storage temperature: -40 °C to +60 °C
• Transport temperature: -40 °C to +60 °C
• Maximum enclosure temperature (tc): 50 °C
• Relative humidity: up to 91% non-condensing
• Degree of protection: IP00 (IP20 when installed in junction box or panel)
• Power supply and load wiring: 0.05 – 2.5 mm² (30 – 12 AWG)
• KNX bus wiring: 0.6 – 0.8 mm² (19 – 18 AWG)
• Stripping length: 8.0 mm
• Plastic enclosure
• Mounting: flush-mounted box or DIN rail (accessory supplied)
• Weight: 37 g
• Dimensions (W×H×D): 53 × 61 × 29 mm

Configuration and commissioning
Detailed parameter descriptions are available in the device application manual. ETS5 or higher is required for configuration and commissioning. Application program for ETS: APEKGDXTPXLVM##.knxprod (## = version).

Technical specifications

• Product type: KNX 2-fold PWM dimmer for LED loads
• Compatible loads: dimmable LED strips and monochromatic LED loads
• Supported input voltages: 12 / 24 / 48 Vdc (supply range 10.8 – 52.8 Vdc)
• Maximum input current: 12 A
• Output current per channel: 6 A (up to 12 A in parallel)
• Nominal power per channel: 72 W (@12 Vdc), 144 W (@24 Vdc), 288 W (@48 Vdc)
• PWM frequency: adjustable 250 Hz – 6 kHz
• Dimming range: 1–100%
• Mounting: DIN rail or flush-mounted box (accessory supplied)
• KNX bus: integrated SELV 30 Vdc communication module, KNX certified
• Protection degree: IP00 (IP20 in junction box/panel)
• Operating temperature: -20 °C to +40 °C
• Weight & dimensions: 37 g; 53 × 61 × 29 mm (W×H×D)
