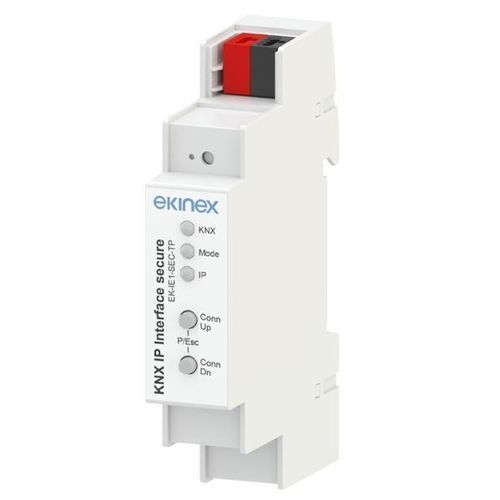

DIN rail interface module EK-IE1-SEC-TP

KNXIPLAN

Description
The Ekinex EK-IE1-SEC-TP is a secure KNX IP interface that provides bidirectional data connection between a PC and a KNX bus via LAN. It supports KNXnet/IP tunnelling and enables addressing, parameter setting, monitoring, logging and diagnostics of KNX devices with ETS. The device is DIN-rail mounted and powered via the KNX bus.

Technical data

• Supply via KNX bus (21–30 Vdc)
• Current consumption: 20 mA from KNX bus
• Up to 8 simultaneous KNXnet/IP connections
• Operating temperature: -5 to +45 °C
• Relative humidity: 5–93% non-condensing

Functions / Features

• Plastic enclosure
• Programming push-button and LED on front
• Status and data-traffic LEDs for KNX bus and Ethernet
• Buttons for activation of special functions
• KNX bus connection via KNX terminal
• Ethernet connection via RJ45 connector
• DIN-rail mounting (35 mm, according to EN 60715)
• Device width: 1 modular unit (1 MU = 18 mm)
• Protection degree: IP20 (device installed)
• Support for KNX Secure technology, activatable via ETS

Configuration and commissioning
Configuration and commissioning require ETS5 or later. ETS application program: APEKIE1SECTP##.knxprod (## = version).

Technical characteristics / Specifications

• Power supply: via KNX bus (21–30 Vdc)
• Consumption: 20 mA from KNX bus
• KNXnet/IP connections: up to 8 simultaneous
• Operating temperature: -5 to +45 °C
• Relative humidity: 5–93% non-condensing
• Mounting: DIN-rail 35 mm (EN 60715)
• Size: 1 modular unit (1 MU = 18 mm)
• Protection: IP20 (device installed)
• Interface: RJ45 Ethernet and KNX terminal
• Security: KNX Secure support
