KNX I/O module EK-CE2-TP

Description

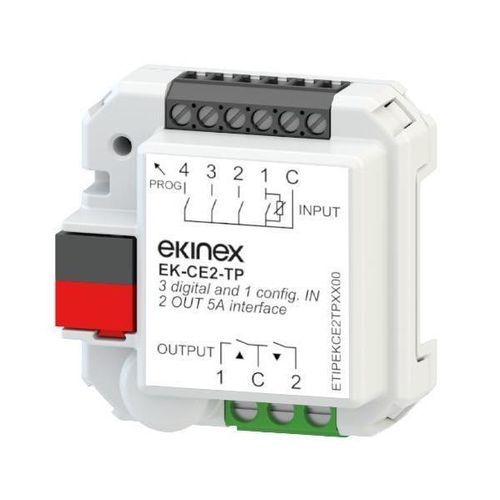

The Ekinex® EK-CE2-TP universal interface is a KNX device that can be used as inputs and/or outputs. The device includes:

• 4 inputs for connecting to the KNX bus switches, push-buttons or conventional non-communicating sensors, or binary signals from other devices to control KNX functions. One input can alternatively be configured as an analog input for a 10 kΩ NTC temperature probe (25 °C).
• 2 relay outputs rated 5 A usable independently to control electrical loads or paired to drive roller shutter/blind motors.

Power supply

• Powered by KNX bus (30 Vdc)
• Current consumption from bus < 10 mA

Supply contents
The package includes a terminal for connection to the KNX bus line. The NTC temperature probe for the channel configured as analogue [AI] must be ordered separately.

Accessories
Support for 35 mm DIN rail mounting (code EK-SMG-35) and spring for rear mounting on Ekinex® flush devices (code EK-MAR-...) are available separately.

Functions / Features

• Plastic enclosure
• Programming push-button and LED on enclosure
• KNX bus connection via KNX terminal
• Inputs and outputs connected via screw terminals
• Protection rating IP20 (device installed)
• Weight: 35 g

Configuration and commissioning
Detailed parameter descriptions are available in the device application manual. ETS5 2.0 or later is required for configuration and commissioning. Application program for ETS: APEKCE2TP##.knxprod (## = version).

Technical characteristics / Specifications

• Model: EK-CE2-TP
• Type: KNX universal interface
• Inputs: 4 digital inputs; 1 input configurable as analog for 10 kΩ NTC at 25 °C
• Outputs: 2 relay outputs 5 A (can operate independently or paired for roller shutter/blind motors)
• Input interrogation voltage: generated internally
• Communication module: integrated KNX bus module
• Power supply: via KNX bus 30 Vdc, consumption < 10 mA
• Mounting: flush wall mounting or on 35 mm DIN rail using bracket
• Programming: push-button and LED
• Connections: KNX terminal for bus line; screw terminals for inputs/outputs
• Protection rating: IP20 (device installed)
• Weight: 35 g
