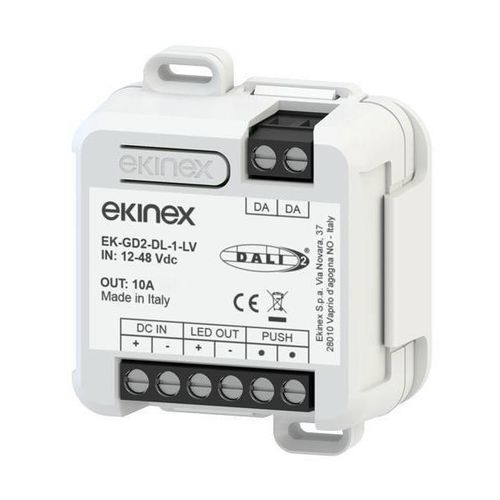

Light dimmer module EK-GD2-DL-1-LV

Description
The DALI-2 1-channel dimmer EK-GD2-DL-1-LV provides brightness control for low-voltage LED sources (12–48 Vdc) using PWM dimming. It supports DALI-2 bus input compliant with IEC 62386 and offers dynamic white control (TW) via DALI DT8 with two independent channels (two DALI addresses) or as a single DT6 channel. Device functions and operating modes are selectable by a selector switch, allowing flexible integration in architectural lighting systems.

Technical data

• Device supply voltage: 10.8 Vdc (min) – 52.8 Vdc (max)
• Maximum output power: 240 W
• Control: DALI-2 bus or local push-button

The provided flicker analysis plots flicker versus frequency across the entire dimming range and highlights low-risk (yellow) and no-observable-effect (green) zones, in accordance with IEEE 1789-2015.

Functions / Features

• Plastic enclosure
• Free-standing installation in junction boxes or on walls
• 35 mm DIN-rail mounting using the included special bracket
• Degree of protection: IP10 (device installed)

Functionality

• Memory function configurable via DALI
• Dimming to complete switch-off (dim-to-dark)
• Minimum brightness level: 0.1%
• PWM modulation: 2000 Hz (flicker-free)
• DALI-configurable dimming curve: linear or logarithmic
• Switch-on and switch-off times configurable via DALI
• Optimised output curve for consistent light quality

Configuration and commissioning

• Screw terminals for DALI bus, control, power supply and LED output
• Maximum recommended connection length between dimmer and driver: < 10 m

Technical specifications

• Model: EK-GD2-DL-1-LV
• Manufacturer: Ekinex
• Product type: DALI-2 1-channel dimmer for low-voltage LED sources
• Supply voltage: 10.8 Vdc (min) – 52.8 Vdc (max)
• Suitable LED source voltage: 12–48 Vdc
• Maximum output power: 240 W
• Dimming method: PWM (2000 Hz, flicker-free)
• Minimum brightness: 0.1%
• DALI compatibility: DALI-2 (IEC 62386); supports DT8 dynamic white (2 independent channels) or DT6 single channel
• Control interfaces: DALI-2 bus or local push-button
• Memory: DALI-configurable memory function
• Dimming curves: linear or logarithmic (set by DALI)
• Switch-on/off times: configurable via DALI
• Degree of protection: IP10 (device installed)
• Mounting: junction box/wall free-standing or 35 mm DIN rail (special bracket included)
• Connections: screw terminals for DALI bus, control, power supply and LED output
• Maximum recommended connection length between dimmer and driver: < 10 m
