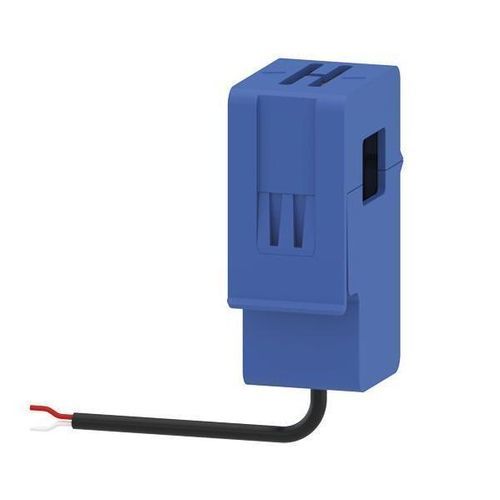

Sensor EK-TA-05A

Description
Current transformer (CT) designed to be used with the EK-CF2-TP load monitoring and control interface.

Technical data

• Rated voltage: 0...1 Vac
• Accuracy: ±1 %
• Linearity: ≤ 0.2 %
• Operating frequency: 50...1 kHz
• Dielectric strength (50 Hz, 1 min): 3 kV
• Flammability rating: UL 94-V0

Available versions

• EK-TA-05A (0...5 A)
• EK-TA-20A (0...20 A)
• EK-TA-30A (0...30 A)
• EK-TA-40A (0...40 A)
• EK-TA-50A (0...50 A)
• EK-TA-60A (0...60 A)

Functions / Features

• Plastic housing
• Ferrite core
• 1.5 m connection cable with open terminals
• Weight: 55 g

Commissioning and configuration
The device does not require configuration. The EK-TA... transformer version must be set in the EK-CF2-TP application program (APEKCF2TP##.knxprod).

Technical specifications / Characteristics

• Displayed product code: EK-TA-05A (example of version)
• Rated voltage: 0...1 Vac
• Accuracy: ±1 %
• Linearity: ≤ 0.2 %
• Operating frequency: 50...1 kHz
• Dielectric strength: 3 kV (50 Hz, 1 min)
• Flammability rating: UL 94-V0
• Housing: plastic material
• Core: ferrite
• Connection cable length: 1.5 m with open terminals
• Weight: 55 g
