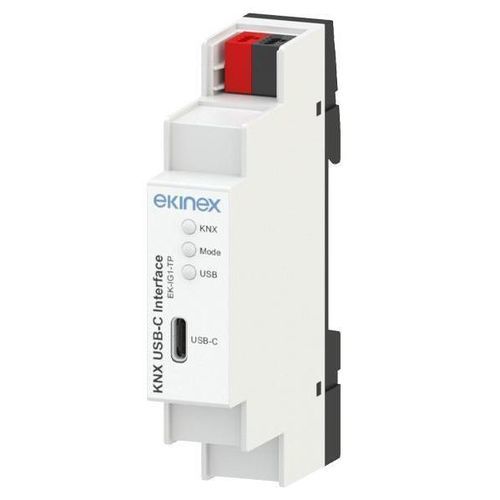

Gateway interface module EK-IG1-TP

DIN railKNXUSB

Description
The EK-IG1-TP is a KNX programming interface for ETS® software. It supports KNX Long Frames for faster downloads on compatible devices and is required for KNX security. Status and bus communication errors are indicated by LEDs. The USB-C connector is galvanically isolated from the KNX bus.

Technical data
Power supply

• Powered from KNX bus (21-30 Vdc)
• USB power: no external adapter required
• Current consumption: <15 mA from KNX bus, <3 mA from USB-C port

Connectors

• KNX TP bus connector (red/black)
• USB: Type-C connector, maximum cable length: 5 m

Environmental conditions

• Operating ambient temperature: -5 ... +45 °C
• Non-operating ambient temperature: -25 ... +70 °C
• Relative humidity (non-condensing): 5 ... 93 %

Other features

• Enclosure material: plastic (PC)
• DIN-rail mounting: 35 mm (according to EN 60715)
• Protection rating: IP20 (device installed, according to EN 60529)
• Equipment class: III (according to EN 60664-1)
• Climatic/mechanical classification: 3K5 / 3M2 (according to EN 50491-2)
• 1 modular unit (1 unit = 18 mm)
• Weight: 40 g
• Dimensions (W×H×D): 17.8 x 90 x 60 mm

Functions / Features

• KNX
  • Transmission medium: TP
  • Interface protocol: HID/cEMI
  • Maximum APDU length: 233 Bytes
  • Object Server protocol: BAOS V2
  • Device model: System B
• Controls and indicators
  • 3 multicolour LEDs for operating status and bus errors

Configuration and commissioning
Configuration and commissioning require ETS5 or later. ETS application program: APEKIG1TP##.knxprod (## = version).

Characteristics / Technical specifications

• Model: EK-IG1-TP
• Function: KNX / USB-C interface for ETS programming
• Supports KNX Long Frames
• Power supply: 21-30 Vdc from KNX bus; can also be powered via USB (no external adapter)
• Consumption: <15 mA from KNX bus, <3 mA from USB-C port
• Connectors: KNX TP (red/black); USB-C (max cable 5 m)
• Max APDU length: 233 Bytes
• Interface protocol: HID/cEMI; Object Server: BAOS V2
• KNX device model: System B
• LEDs: 3 multicolour LEDs for status and errors
• Mounting: 35 mm DIN rail (EN 60715)
• Enclosure material: PC
• Protection rating: IP20 (installed)
• Equipment class: III (EN 60664-1)
• Climatic/mechanical classification: 3K5 / 3M2 (EN 50491-2)
• Dimensions: 17.8 x 90 x 60 mm
• Weight: 40 g
• Panel occupancy: 1 modular unit (18 mm)
