AC/DC power supply EK-AG1-TP
DIN raildual-outputfor building automation systems

AC/DC power supply - EK-AG1-TP - ekinex® - DIN rail / dual-output / for building automation systems
AC/DC power supply - EK-AG1-TP - ekinex® - DIN rail / dual-output / for building automation systems
Add to favorites
Compare this product
Go to the ekinex® website for more information

Characteristics

Type
AC/DC
Installation
DIN rail
Output
dual-output
Applications
for building automation systems
Other characteristics
KNX, low-voltage, safety
Input voltage

230 V

Output voltage

30 V

Current

0.1 A

Power

22 W

Description

Product description

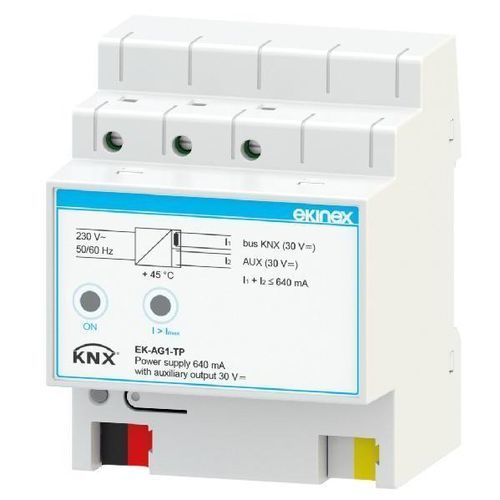

The Ekinex 640 mA KNX bus power supply supplies and monitors the 30 Vdc voltage required by the KNX bus for operation. An integrated choke provides decoupling between the power supply and the bus line. On a bus line powered by a 640 mA power supply unit a maximum of 64 bus devices may be connected. Output is protected from overload and short-circuit. The EK-AG1-TP version is provided with an additional 30 Vdc auxiliary output that can be used as auxiliary power supply for other devices requiring SELV voltage (Safety Extra Low Voltage). The total current provided by the two outputs (KNX bus line and auxiliary power supply) cannot exceed 640 mA. The device supports short network voltage interruptions (max. 200 ms).

Technical data
  • Input voltage: 230 Vac, 50/60 Hz
  • Power absorption: 22 W
  • Loss: < 3 W
  • Output voltage (KNX bus): 30 Vdc
  • Output voltage (auxiliary output): 30 Vdc
  • Nominal current (output total): 640 mA
  • Buffer time: 200 ms

Delivery
Delivery includes one terminal block for connection to the bus and is delivered with a second terminal block for connection to the auxiliary output.

Functions / Features
  • Plastic casing
  • Connection to bus line with KNX terminal block
  • Connection of auxiliary output with dedicated terminal block
  • Connection of 230 Vac power supply with screw terminals
  • Climatic classification 3K5 and mechanical 3M2 (according to EN 50491-2)
  • Pollution degree 2 (according to IEC 60664-1)
  • Safety class II
  • Installation on 35 mm rail (according to EN 60715)
  • 4 modular units (1 MU = 18 mm)
  • IP20 protection grade (installed device)
  • Weight: 165 g

Configuration and commissioning
The device does not need any configuration. ETS application program: APEKAG1TP##.knxprod (## = release).

Specifications / Technical data
  • Model: EK-AG1-TP
  • Brand: Ekinex
  • Input voltage: 230 Vac, 50/60 Hz
  • Power absorption: 22 W
  • Loss: < 3 W
  • Output voltage (KNX bus): 30 Vdc
  • Output voltage (auxiliary output): 30 Vdc
  • Nominal current (output total): 640 mA
  • Buffer time: 200 ms
  • Plastic casing
  • KNX terminal block for bus connection
  • Dedicated terminal block for auxiliary output
  • Screw terminals for 230 Vac
  • Climatic classification: 3K5
  • Mechanical classification: 3M2
  • Pollution degree: 2
  • Safety class: II
  • Mounting: 35 mm DIN rail (EN 60715)
  • Width: 4 modular units (1 MU = 18 mm)
  • Protection grade: IP20 (installed device)
  • Weight: 165 g
