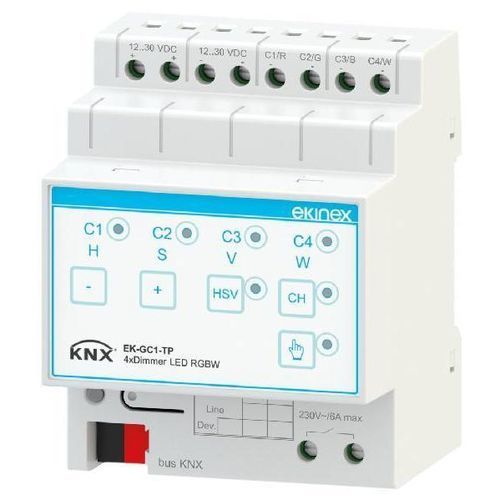

Light dimmer module EK-GC1-TP

Product description
The Ekinex EK-GC1-TP is a 4-channel RGBW LED dimmer designed for independent regulation of four constant-voltage LED strips (12/24 Vdc) or combined intensity and colour control of an RGB or RGBW LED strip. Colour selection is available in HSV or RGB mode. The unit is intended for installation on a 35 mm DIN-rail and integrates KNX bus communication for building automation. The device is bus-powered for control and requires an additional 12–30 Vdc supply for the controlled loads.

Technical data

• Strip supply voltage: max 30 Vdc, total max 16 A
• Control power: supplied via KNX bus (30 Vdc)
• Number of outputs: 4
• Maximum load current per channel: 4 A

Delivery
Delivery includes a KNX terminal block for bus connection and a terminal block for outputs and power supply.

Functions / Features

• Plastic casing, 4 modular units (1 MU = 18 mm)
• Membrane pushbuttons and LEDs for status indication
• Frontal programming pushbutton and LED
• Pushbutton for switching automatic/manual operation modes
• CH pushbutton for individual or simultaneous channel control
• HSV / RGB pushbutton colour control mode
• Auxiliary dry contact to disconnect load power supply during standby
• Connection to bus line with KNX terminal block
• Screw terminals for outputs and 12–30 Vdc power supply
• Installation on 35 mm DIN-rail (EN 60715), protection degree IP20 (installed)

Configuration and commissioning
Configuration requires ETS5 or later versions. ETS application program: APEKGC1TP##.knxprod (## = release). Detailed parameter descriptions are available in the device application manual.

Technical specifications

• Model: EK-GC1-TP
• Application: Independent dimming of 4 LED strips or intensity+colour control of RGB/RGBW LED strip
• Compatible LED strip supply: constant voltage (12/24 Vdc), maximum strip voltage 30 Vdc
• Maximum total strip current rating: 16 A
• Number of outputs: 4
• Maximum load current per channel: 4 A
• Control power: supplied via KNX bus (30 Vdc)
• Additional power required for loads: 12–30 Vdc
• Manual interface: membrane pushbuttons and status LEDs; auto/manual switching
• Colour selection modes: HSV or RGB
• Programmable functions: scenarios, predefined sequences, sequence repetition, random, dimming speed, holding time
• Auxiliary dry contact for disconnecting load power in standby
• Connections: KNX terminal block for bus; screw terminals for outputs and power supply
• Mounting: 35 mm DIN-rail (EN 60715)
• Size: 4 MU (1 MU = 18 mm)
• Protection degree: IP20 (installed device)
• ETS compatibility: ETS5 or later; application program APEKGC1TP##.knxprod
