Air conditioner control EK-HB1-TP

Description

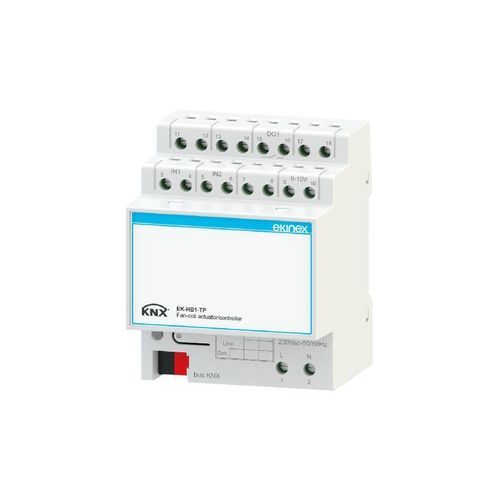

The actuator/controller Ekinex® EK-HB1-TP is designed to control a fancoil unit for space air-conditioning. It can operate as a simple actuator when paired with a KNX room thermostat or as a regulator/actuator acquiring temperature from a KNX room sensor or from a probe connected to an analog input. The device is suitable for 2-pipe hydraulic distribution systems with ON/OFF control of a thermal actuator valve and control of a fan driven by a brushless motor. Unused outputs can be configured as binary channels to perform other functions. The unit includes 2 inputs configurable as analog or binary. An integrated KNX bus communication module is provided and the product is intended for 35 mm DIN-rail mounting. Power for the electronics is supplied via the KNX bus; 230 Vac mains supply is required for load power.

Technical data
Power supply

• Supply for loads: 230 Vac 50/60 Hz
• Electronics supply: 30 Vdc via KNX bus

Inputs

• 2 freely configurable inputs for temperature probes (NTC 10 kΩ at 25 °C) or potential-free binary inputs

Outputs

• 1 output for brushless motor control with 0-10 V control signal
• 1 SPST relay output for actuator control
• ON/OFF valve control for 2-pipe systems

Supply

• The supply includes a terminal for connection to the KNX bus line.

Functions / Features

• Plastic enclosure
• Programming push-button and LED on the front
• KNX bus connection via terminal block
• Inputs, outputs and 230 Vac connections via screw terminals
• Climatic class 3K5 and mechanical class 3M2 (EN 50491-2)
• Overvoltage category III (EN 60664-1)
• Pollution degree 2 (IEC 60664-1)
• 35 mm DIN-rail mounting (EN 60715)
• 4 modular units (1 MU = 18 mm)
• Protection degree IP20 (installed)
• Weight: 175 g

Configuration and commissioning
Detailed parameter descriptions are available in the device application manual. ETS5 or later is required for configuration and commissioning. Application program for ETS: APEKHB1TP##.knxprod (## = version).

Specifications

• Load supply voltage: 230 Vac 50/60 Hz
• Electronics supply voltage: 30 Vdc via KNX bus
• Inputs: 2 configurable inputs, passive probe acquisition NTC 10 kΩ @25 °C or binary inputs
• Outputs: 1 × 0-10 V for brushless motor; 1 × SPST relay for actuator; ON/OFF valve function for 2-pipe systems
• Integrated KNX bus communication module
• 35 mm DIN-rail mounting
• 4 modular units (1 MU = 18 mm)
• Protection degree IP20 (installed)
• Climatic class 3K5 and mechanical class 3M2
• Overvoltage category III; pollution degree 2
• Weight: 175 g
