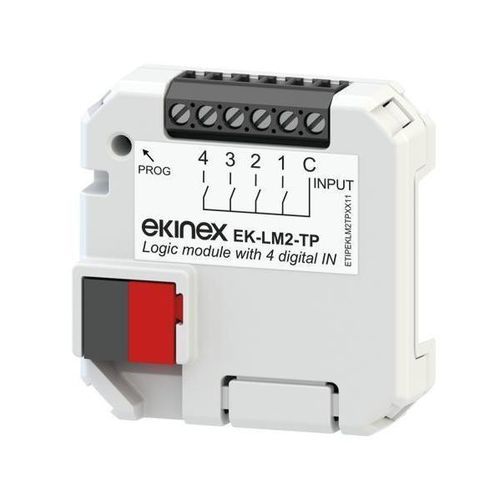

KNX multi application controller EK-LM2-TP

Description
The configurable logic module Ekinex® EK-LM2-TP is a KNX S-mode device for implementing logical functions and arithmetic operations on KNX communication object values. Suitable for flush mounting in a wall box or, with the EK-SMG-35 support, on a 35 mm DIN rail (EN 60715). Powered by the KNX bus (SELV 30 Vdc), the module does not require an auxiliary power supply.

Power supply

• 30 Vdc supply via KNX bus
• Current consumption from bus < 10 mA

Delivery contents

• Bus terminal for line connection included

Accessories

• Support for 35 mm DIN-rail mounting (code EK-SMG-35) included
• Spring clip for attachment to Ekinex® wall devices (code EK-MAR-...) available separately

Functions / Features

• Plastic enclosure
• Designed for flush mounting or, with support, on 35 mm DIN rail (EN 60715)
• Protection rating IP20
• Climatic class 3K5 and mechanical class 3M2 (EN 50491-2)
• Pollution degree 2 (IEC 60664-1)
• Weight: 20 g

Implementable functional blocks

• Logical: combines binary inputs according to logical operations
• Mathematical: performs arithmetic calculations on one or more inputs
• Range: scales or limits input values
• Mapping: maps an input value set (up to 8 points) to a different output value set
• Conversion: converts a communication object to another KNX data point type (DPT)
• Timer: one-shot (monostable) or oscillator (astable) timer with programmable on/off delays
• Comparison: arithmetic comparison (equal, greater, less, etc.) between two input values
• Multiplexer: routes the value of one input object to one of N output objects or to selected outputs

Each function is configurable via multiple parameters. Multiple independent instances of each block type are available (quantity varies by type), allowing the module to solve several automation tasks within the same installation. A terminal for a simple interface with four low-voltage inputs (potential-free contacts) is also provided.

Configuration and commissioning
Detailed parameter descriptions are available in the device application manual. ETS5 2.0 or later is required for configuration and commissioning. ETS application program: APEKLM2TP##.knxprod (## = version).

Technical characteristics / specifications

• Brand: Ekinex
• Commercial name / Model: EK-LM2-TP
• Type: Configurable KNX S-mode logic module
• Power supply: SELV 30 Vdc via KNX bus
• Current consumption: < 10 mA from bus
• Auxiliary supply: not required
• Mounting: flush in wall box or on 35 mm DIN rail (EN 60715) with EK-SMG-35 support
• Protection rating: IP20
• Climatic class: 3K5
• Mechanical class: 3M2
• Pollution degree: 2 (IEC 60664-1)
• Weight: 20 g
• Terminal for interface with 4 low-voltage inputs (potential-free contacts)
• Protocol: KNX S-mode
• ETS application: APEKLM2TP##.knxprod
• Available block types: Logical, Mathematical, Range, Mapping, Conversion, Timer, Comparison, Multiplexer
