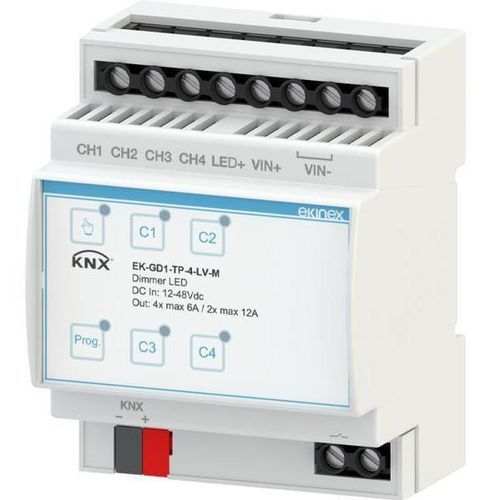

Light dimmer module EK-GD1-TP-4-LV-M

Product overview
The KNX 4-channel PWM dimmer EK-GD1-TP-4-LV provides PWM brightness control for monochrome LED strips and other compatible LED loads. Designed for integration into KNX building automation systems, it mounts on a 4-module DIN rail and includes an integrated SELV 30 Vdc bus communication module. The device is KNX certified and intended for use in electrical switch cabinets.

Technical Data
Inputs

• Constant input voltage: 12 / 24 / 48 Vdc
• Supply voltage operating range: 10.8 Vdc – 52.8 Vdc
• Max. input current: 12 A

Outputs

• PWM voltage output: 12 / 24 / 48 Vdc
• Output current: 6 A per channel (single); up to 12 A for two channels paralleled
• Rated power per channel: 72 W @12 Vdc, 144 W @24 Vdc, 288 W @48 Vdc

Dimming

• PWM dimming frequency selectable via ETS: 250 Hz – 6 kHz
• Dimming range: 1–100%

Delivery
Terminal for bus connection is included in the scope of delivery.

Functions / Features

• ON/OFF control and dimming of individual or grouped luminaires
• PWM output frequency selection via ETS (250 Hz–6 kHz)
• Parallel connection of outputs to increase total output power
• Configurable fade on/off, min/max brightness, linear or logarithmic dimming curve via ETS
• Soft or instantaneous switching with adjustable delay
• Behavior after power reset, bus ON/OFF and unloading configurable via ETS
• Channels configurable as independent, parallel or copy of another channel via ETS
• Blocking, forced operation, staircase lighting, scenes, night mode, counters and logic functions per channel (ETS configurable)
• Power-failure alarm
• Manual control: membrane buttons for local ON/OFF testing (short press ON/OFF; press ≥2 s -> ~1 s flash)
• Relay contact for switching AC/DC supply off when outputs are off or as auxiliary relay
• Auxiliary output function via relay with status indication on KNX

Environmental conditions and other features

• Operating temperature: -20 °C … +40 °C
• Storage/transport temperature: -40 °C … +60 °C
• Max. enclosure temperature (tc): 80 °C
• Relative humidity: up to 91% non-condensing
• Degree of protection: IP00 (IP20 in junction box / switchboard)
• Power/load wiring: solid 0.2–4.0 mm² (24–11 AWG); stranded 0.2–6 mm² (24–9 AWG)
• KNX bus wiring: 0.6–0.8 mm² (19–18 AWG)
• Stripping length: 8.0 mm
• Plastic housing, 4 MU DIN-rail mounting
• Weight: 200 g
• Dimensions (W×H×D): 71 × 91 × 62 mm

Configuration and commissioning
Detailed parameter descriptions are in the device application manual. ETS5 or later is required for configuration. Application program for ETS: APEKGDXTPXLVM##.knxprod (## = version).

Technical specifications

• Model: EK-GD1-TP-4-LV-M
• Type: KNX 4-channel PWM dimmer for monochrome LED strips
• Input voltage options: 12 / 24 / 48 Vdc
• Supply voltage range: 10.8 – 52.8 Vdc
• Max input current: 12 A
• Output current per channel: 6 A (single) / up to 12 A (parallel of 2)
• Rated power per channel: 72 W @12 Vdc; 144 W @24 Vdc; 288 W @48 Vdc
• PWM frequency: 250 Hz – 6 kHz (ETS selectable)
• Dimming range: 1–100%
• Protection degree: IP00 (IP20 in cabinet)
• Wiring: power/load 0.2–6 mm²; KNX bus 0.6–0.8 mm²
• Weight & dimensions: 200 g; 71 × 91 × 62 mm
