AC/DC power supply EK-AB1-TP

DIN railregulatedsingle-output

Description

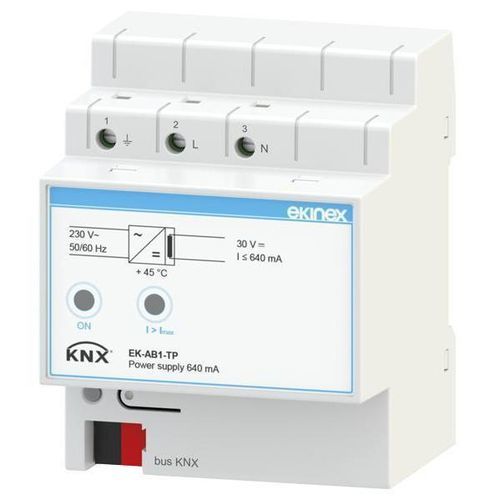

The Ekinex® EK-AB1-TP is a 640 mA KNX bus power supply that provides and monitors the 30 Vdc bus voltage required for KNX operation. An integrated choke decouples the power supply from the bus line. On a bus line powered by a 640 mA unit, up to 64 KNX devices can be connected. The output is protected against overload and short-circuit, ensuring stable operation for building automation installations.

Technical data

• Input voltage: 230 Vac, 50/60 Hz
• Power absorption: 22 W
• Loss: < 3 W
• Output voltage (KNX bus): 30 Vdc
• Nominal current (output total): 640 mA
• Buffer time: 200 ms

Delivery
Delivery includes one terminal block for connection to the bus.

Functions / Features

• Plastic casing
• Connection to bus line with KNX terminal block
• Connection of 230 Vac power supply with screw terminals
• Climatic classification: 3K5 and mechanical classification: 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Safety class II
• Installation on 35 mm rail (according to EN 60715)
• 4 modular units (1 MU = 18 mm)
• IP20 protection grade (installed device)
• Weight: 150 g (EK-AB1-TP)

Configuration and commissioning
The device requires no configuration. ETS application program: APEKAB1TP##.knxprod (## = release).

Technical specifications

• Model: EK-AB1-TP
• Input voltage: 230 Vac, 50/60 Hz
• Output voltage: 30 Vdc (KNX bus)
• Nominal output current: 640 mA
• Power absorption: 22 W; Loss < 3 W
• Buffer time: 200 ms
• Installation: 35 mm DIN rail; 4 modular units (1 MU = 18 mm)
• Protection grade: IP20 (installed device)
• Weight: 150 g
