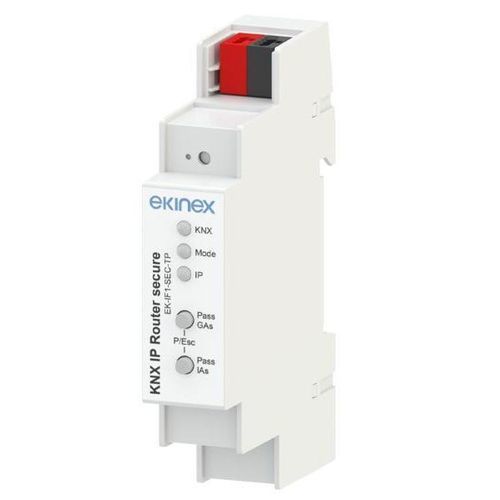

Ethernet communication router EK-IF1-SEC-TP

Description
The Ekinex® EK-IF1-SEC-TP IP router provides bidirectional data communication between a PC (or laptop) and a KNX TP bus via a LAN. The IP interface supports tunneling and enables addressing, parameterization, monitoring, logging and diagnostics of KNX bus devices via ETS. The router integrates a line/area coupler function so telegrams can be exchanged between KNX TP lines over a TCP/IP backbone. The device includes an integrated KNX bus communication module and is designed for 35 mm DIN-rail mounting. Power is supplied via the KNX bus.

Technical data

• Supply via KNX bus (21–30 Vdc)
• Current consumption: 20 mA from KNX bus
• Up to 8 simultaneous KNXnet/IP connections
• Extended main group filter 0..31
• Operating temperature: -5 … +45 °C
• Relative humidity: 5–93% non-condensing

Functions / Features

• Plastic enclosure
• Programming push-button and LED on the front
• LED indicators for device status and bus/Ethernet traffic
• Buttons for activating special functions
• KNX bus connection via KNX terminal
• Ethernet connection via RJ45 connector
• 35 mm DIN-rail mounting (according to EN 60715)
• Device width: 1 modular unit (1 MU = 18 mm)
• Protection degree IP20 (device installed)
• Support for KNX Secure, activatable via ETS®
• Line/Area coupler functionality for telegram exchange between KNX TP lines via TCP/IP backbone

Configuration and commissioning
A detailed description of parameters is available in the device application manual. ETS5 or later is required for configuration and commissioning. Application program for ETS: APEKIF1SECTP##.knxprod (## = version).

Characteristics / Technical specifications

• Model: EK-IF1-SEC-TP
• Brand: Ekinex®
• Supply: via KNX bus 21–30 Vdc
• Consumption: 20 mA from KNX bus
• KNXnet/IP connections: up to 8 simultaneous connections
• Main group filter: extended 0..31
• Operating temperature: -5 … +45 °C
• Relative humidity: 5–93% non-condensing
• Enclosure: plastic
• Programming button and LED: front panel
• LED signalling: status and data traffic on bus and Ethernet
• Physical interfaces: KNX terminal for bus, RJ45 connector for Ethernet
• Mounting: 35 mm DIN-rail (EN 60715)
• Modular size: 1 MU = 18 mm
• Protection: IP20 (device installed)
• Security support: KNX Secure, activatable via ETS®
• Coupler function: KNX line/area coupler (telegram exchange between KNX TP lines via TCP/IP backbone)
• Integrated KNX bus communication module
