KNX I/O module EK-FG1-TP-I

Description

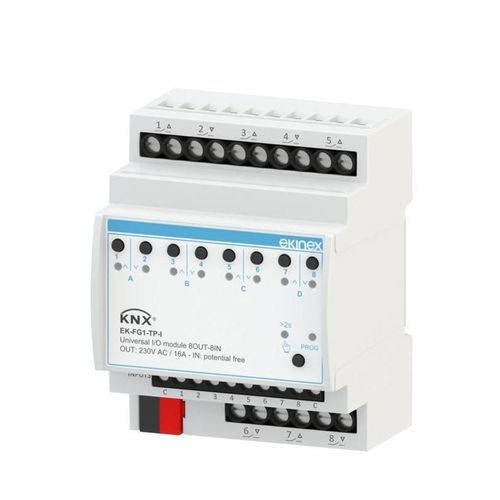

The Ekinex ÆVO EK-FG1-TP-I is a universal KNX I/O module designed for control of building electrical loads and actuators in industrial and commercial installations. It provides potential-free bistable relay outputs and configurable analog/digital inputs to manage lighting, valves, motorized drives and climate functions from the KNX bus.

Technical data
Power supply

• Voltage: 30 Vdc via KNX bus

Outputs

• Number: 8 (bistable relays)
• Voltage: 230 V AC
• Current: 16 A per output

Inputs

• Number: 8 (configurable analog/digital)
• Support for passive temperature probes (NTC 10 kΩ at 25°C)
• Support for potential-free switches, push-buttons or conventional sensors

Supply
The device includes a KNX bus connector. Passive NTC temperature probes must be ordered separately.

Functions / Features

• Plastic enclosure suitable for DIN-rail mounting
• Front push-buttons and LEDs for local control and status indication
• Front programming / manual-automatic mode button and LED
• Bus connection via KNX terminal
• Load connection via screw terminals, cable section up to 4 mm²
• Input connection via screw terminals, cable section up to 2.5 mm²
• Adjacent outputs can switch different phases
• Device width: 4 modular units (1 MU = 18 mm)

Configuration and commissioning
Parameter descriptions are available in the device application manual. ETS5 or later is required for configuration and commissioning. ETS application: APEKFG1TPI##.knxprod

Characteristics / Technical specifications

• Brand: Ekinex
• Model: EK-FG1-TP-I
• Number of outputs: 8 bistable relays
• Output type: potential-free bistable relay contacts
• Output voltage: 230 V AC
• Current per output: 16 A
• Number of inputs: 8 (analog/digital, configurable)
• Inputs for probes: NTC 10 kΩ at 25°C
• Power supply: KNX bus 30 Vdc (no auxiliary supply required)
• Mounting: DIN-rail 35 mm
• Front push-buttons and LEDs for control and indication
• Dimensions: 4 modular units (1 MU = 18 mm)
• Product code: EK-FG1-TP-I
