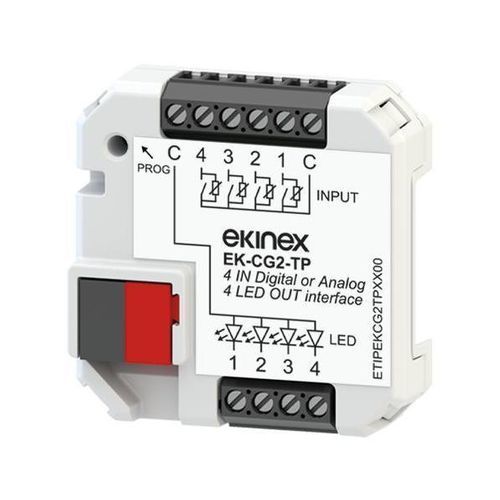

KNX I/O module EK-CG2-TP

Description
The Ekinex® EK-CG2-TP universal interface is a KNX device that can operate as inputs and/or outputs. The device provides 4 configurable inputs and 4 control outputs for driving low-power LEDs.

Inputs

• Each input can be individually configured to connect to the KNX bus: switches, push-buttons or conventional (non-addressable) sensors, or binary signals from other devices to command and control KNX functions
• Passive temperature probes (NTC 10 kΩ at 25°C). Measured ambient temperature can be sent on the bus or used for local climate control via the integrated thermostat function

The input channel interrogation voltage is generated internally. The device includes an integrated KNX communication module and is designed for flush wall mounting or on a 35 mm DIN rail using a support. Power is supplied via the KNX bus; no auxiliary supply is required.

Power supply

• 30 Vdc supply via KNX bus
• Current consumption from the bus < 10 mA

Delivery scope
The package includes a terminal block for connection to the bus line. NTC temperature probes for channels configured as analog inputs must be ordered separately.

Accessories
Mounting support for 35 mm DIN rail (code EK-SMG-35) and spring for mounting on the rear of Ekinex® wall devices (code EK-MAR-...) are available separately.

Functions / Features

• Plastic enclosure
• Programming push-button and LED on the enclosure
• Bus connection via KNX terminal block
• Screw terminals for inputs and outputs
• Protection degree IP20 (device installed)
• Weight 20 g

Configuration and commissioning
A detailed description of parameters is provided in the device application manual. ETS5 or later is required for configuration and commissioning. Application program for ETS: APEKCG2TP##.knxprod (## = version).

Technical specifications

• Model: EK-CG2-TP
• Type: KNX I/O interface with thermostat function
• Inputs: 4 configurable inputs (DI or NTC)
• Outputs: 4 control outputs for driving low-power LEDs
• Probe support: NTC 10 kΩ at 25°C for inputs configured as analog
• Input channel interrogation voltage generated internally
• Integrated KNX communication module
• Mounting: flush wall mounting or on 35 mm DIN rail via support
• Power supply: via KNX bus (30 Vdc)
• Consumption: < 10 mA from the bus
• Connectivity: KNX bus terminal; screw terminals for inputs/outputs
• Programming: integrated programming push-button and LED
• Software requirements: ETS5 or later; program file APEKCG2TP##.knxprod
• Protection degree: IP20 (device installed)
• Weight: 20 g
• Recommended accessories: support EK-SMG-35, spring EK-MAR-...
