AC/DC power supply EK-PSUD24
DC/DCDIN railregulated

AC/DC power supply - EK-PSUD24 - ekinex® - DC/DC / DIN rail / regulated
AC/DC power supply - EK-PSUD24 - ekinex® - DC/DC / DIN rail / regulated
Add to favorites
Compare this product
Go to the ekinex® website for more information

Characteristics

Type
AC/DC, DC/DC
Installation
DIN rail
Output
single-output, regulated, adjustable
Applications
for control panels, for building automation systems
Other characteristics
switching
Input voltage

Max.: 350 V

Min.: 100 V

Output voltage

Max.: 28 V

Min.: 23.3 V

Current

Max.: 0.5 A

Min.: 0 A

Power

4 W

Description

Description

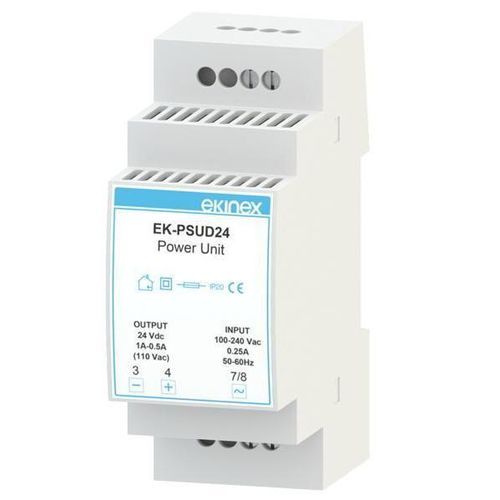

The Ekinex® EK-PSUD24 is a compact DIN-rail switching power supply with universal input and an adjustable output voltage. It accepts 100–240 Vac (50/60 Hz) or 110–350 Vdc and provides an adjustable output from 23.3 to 28 Vdc. Housed in a flame-retardant UL94V-0 plastic casing sized for 2 modular units, it integrates thermal, overload and short-circuit protections for reliable use in electrical control panels.

Connections
  • Screw terminals for mains input
  • Screw terminals for load outputs
  • Screw terminals for output voltage adjustment


Technical data
  • Input voltage: 100–240 Vac 50/60 Hz or 110–350 Vdc
  • Input current: 0.20 A (@115 Vac) / 0.22 A (@230 Vac)
  • Input protection: fuse
  • Output current: up to 0.5 A (@115 Vac)
  • Hold-up time: 7 ms (@115 Vac) / 15 ms (@230 Vac)
  • Ripple: < 50 mV rms
  • Protections: thermal, overload, short-circuit
  • Power dissipation: 4 W (@230 Vac)
  • Operating temperature: -10 to +60 °C
  • Relative humidity (non-condensing): 0–95%
  • Protection degree: IP20
  • Dimensions (WxHxD): 35.5 x 90 x 60 mm
  • Weight: 110 g
  • Housing: flame-retardant plastic UL94V-0
  • Mounting: 35 mm DIN-rail (2 UM)
  • Terminal block: screw terminals, max. cable 2.5 mm²
  • Standards: CEI EN 64-8 PELV/SELV, CEI EN 60950-1, CEI EN 61000-6-1, CEI EN 61000-6-3, CEI EN 55011, CEI EN 55014


Functions / Features
  • Adjustable output voltage 23.3–28 Vdc via a trimmer (adjustable with a star screwdriver)
  • Compact 2-module form factor for space-saving panel installation
  • Suitable for powering Ekinex® Delégo EK-DEL-... modules and other 24 Vdc control devices


Configuration and commissioning
No configuration required. Connect input and outputs, adjust output voltage if necessary, and secure on a 35 mm DIN rail.

Technical specifications
  • Model: EK-PSUD24
  • Input: 100–240 Vac 50/60 Hz or 110–350 Vdc
  • Adjustable output: 23.3–28 Vdc
  • Output current: up to 0.5 A (@115 Vac)
  • Input current rating: 0.20 A (@115 Vac) / 0.22 A (@230 Vac)
  • Hold-up time: 7 ms (@115 Vac) / 15 ms (@230 Vac)
  • Ripple: < 50 mV rms
  • Protections: thermal, overload, short-circuit; input fuse
  • Power dissipation: 4 W (@230 Vac)
  • Operating temperature: -10 to +60 °C
  • Relative humidity (non-condensing): 0–95%
  • Form factor: 2 modular units (1 UM = 18 mm), DIN-rail mount (35 mm)
  • Housing: flame-retardant plastic UL94V-0
  • Terminals: screw terminal block, max. cable 2.5 mm²
  • Protection degree: IP20
  • Dimensions: 35.5 x 90 x 60 mm
  • Weight: 110 g
  • Standards: CEI EN 64-8 PELV/SELV, CEI EN 60950-1, CEI EN 61000-6-1, CEI EN 61000-6-3, CEI EN 55011, CEI EN 55014
