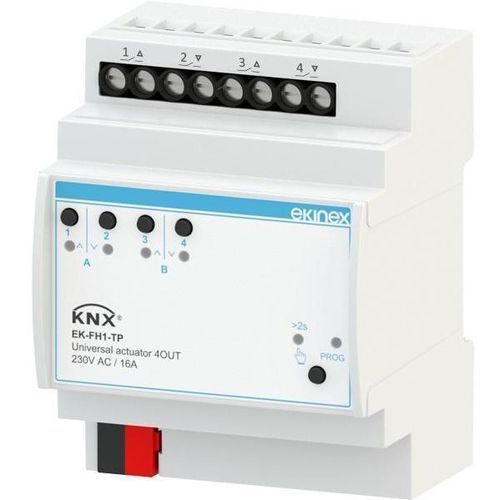

DIN rail actuator EK-FH1-TP

Description
Universal KNX actuator EK-FH1-TP from the ÆVO series designed to control up to four separate electrical load groups (e.g. lights, valves) or up to two motorised drives (e.g. blinds, 3-way valves) independently or in combination. The device features potential-free relay outputs with bistable relays that retain the last command state even in case of bus power loss.

Operating functions
The unit includes push-buttons for local control and LEDs for status indication; a dedicated button switches between automatic and manual operation. It integrates a KNX bus communication module and is intended for mounting on a 35 mm DIN rail. Power is supplied via the KNX bus (no auxiliary power required).

Technical data

• Power supply: 30 V DC via KNX bus
• Outputs: 4 (bistable relays)
• Output voltage: 230 V AC
• Current: 16 A per output

Delivery
The delivery includes a terminal for connection to the KNX bus line.

Functions / Features

• Plastic enclosure
• Front push-buttons and LEDs for local control and output status indication
• Front programming / manual-automatic push-button and LED
• KNX bus connection via KNX terminal
• Load connections via screw terminals for conductor cross-section up to 4 mm²
• Possible connection of different phases on adjacent outputs
• Device width: 4 modular units (1 MU = 18 mm)

Configuration and commissioning
Detailed parameter descriptions are provided in the device application manual. ETS5 or later is required for configuration and commissioning. ETS application: APEKFH1TP##.knxprod

Characteristics / Technical specifications

• Brand: Ekinex
• Series: ÆVO
• Type: KNX universal actuator
• Model (product code): EK-FH1-TP
• Number of outputs: 4 bistable relays
• Rated output voltage: 230 V AC
• Maximum current per output: 16 A
• Power supply: via KNX bus (30 V DC), no auxiliary supply
• Load connections: screw terminals, up to 4 mm²
• Local control and programming via push-buttons and LEDs
• Mounting: 35 mm DIN rail
• Width: 4 modules (1 MU = 18 mm)
• Programming: ETS application provided (APEKFH1TP##)
