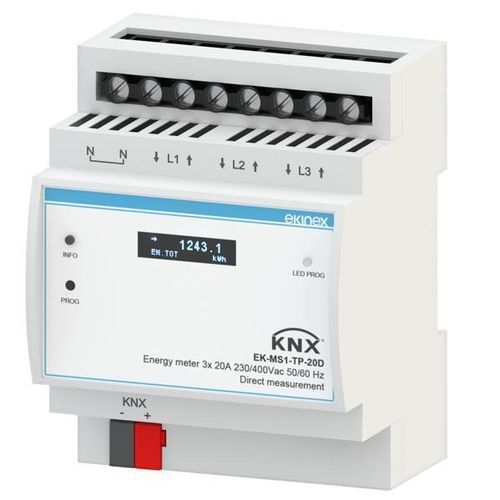

Three-phase energy meter EK-MS1-TP-20D

single-phasedigitalmulti-circuit

Description
What cannot be measured, cannot be improved: Ekinex supports the energy efficiency of buildings with its Smart Metering solution. The KNX three-phase secondary electricity meter is designed to measure active and reactive energy with bidirectional counting (import/export). It publishes electrical parameters on the KNX bus for integration in building energy management and automation systems.

Technical data

• Rated voltage Un: 3x230/400 V AC (±20%)
• Rated frequency fn: 50 Hz
• Direct connection current Imax: 20 A
• Bus current consumption: < 10 mA

Supply
A terminal for connection to the KNX bus line is included in the scope of supply.

Functions / Features

• OLED display for measured values and diagnostic information
• Bidirectional measurement of active and reactive parameters for single-phase and three-phase circuits
• Three measurement circuits; each can be used as an independent single-phase circuit
• Direct connection via screw terminals; cable cross-section up to 4 mm²
• Accuracy better than 2%
• Integrated KNX communication module to publish values on the KNX bus
• 4 UM modular plastic housing (1 UM = 18 mm)

Configuration and commissioning
Parameters and behavior are configurable via ETS. ETS5 or later versions are required for configuration and commissioning. Application program for ETS: APEKMSXTP##.knxprod

Specifications

• Measured quantities: active and reactive energy, current, voltage, active and reactive power, power factor and other electrical parameters
• Bidirectional counting for import and export energy
• Three measurement circuits for direct connection up to 20 A; can be used as independent single-phase circuits
• Integrated KNX communication module; total/partial counters, comparators and configurable logic functions
• DIN-rail mounting according to EN 60715 for switchboards and control cabinets
• Display: OLED for measured and diagnostic information
• Accuracy: < 2%
• Housing: 4 UM modular plastic housing (1 UM = 18 mm)
• Connection terminals: screw terminals supporting cable cross-section up to 4 mm²
• Bus current consumption: < 10 mA
