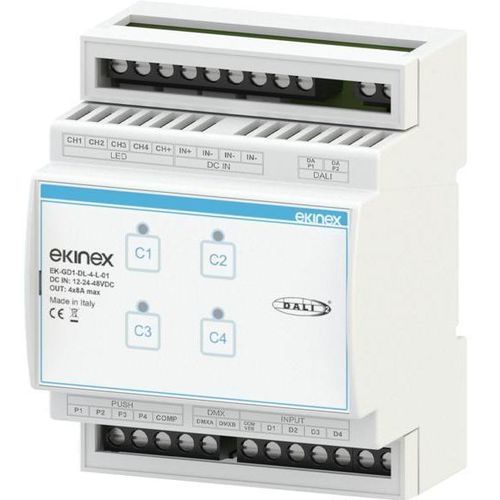

Light dimmer module EK-GD1-DL-4-L-01

Description
The EK-GD1-DL-4-L-01 is a DALI 2 standard 4-channel dimmer powered by 12/24/48 Vdc. It provides flicker-optimized PWM dimming for low-voltage LED installations and supports brightness control, Tunable White (TW) and RGB/RGBW colour control (DT6 and DT8) via DALI 2 bus inputs compliant with IEC 62386. Operating modes are set locally using a dip-switch selector, making the unit suitable for integration in architectural lighting systems.

Technical data
Inputs

• Constant input voltages: 12 Vdc, 24 Vdc, 48 Vdc
• Supply voltage operating range: 8 ÷ 53 Vdc

Outputs

• Number of outputs: 4 PWM channels
• PWM output voltage: 12/24/48 Vdc
• Supported load types: single colour, Tunable White (TW), RGB, RGBW (DT6 and DT8)
• Output current per channel: 0 A ÷ 8 A
• Single-channel mode output current: up to 32 A (max. 1536 W @48 Vdc)
• Nominal output power per channel: 96 W (@12 Vdc), 192 W (@24 Vdc), 384 W (@48 Vdc)

Control

• Control interfaces: DALI2 DT6/DT8, 0-10V / 1-10V (active/passive), PUSH, linear potentiometer, switch, sensor, phase cut, DMX512A-RDM, BLE

Notes on flicker
Flicker behaviour has been characterised across the full dimming range. Results indicate low-risk and no-observable-effect zones according to IEEE 1789-2015 guidance; consult the device data for frequency-specific performance.

Functions / Features

• Isolated PUSH inputs and support for active/passive 0-10V and 1-10V potentiometer control
• Support for switches, sensors, phase-cut control, DALI2 DT6/DT8, DMX512A-RDM and BLE
• Master/slave functionality via DMX512A-RDM
• Status LEDs for each output channel and for dimmer configuration
• Selectable PWM frequencies: 390 Hz, 3000 Hz, 10000 Hz
• Protections: polarity reversal, short circuit, open circuit and voltage spikes
• Local dip-switch selector for operating mode configuration

Configuration and commissioning
Configuration and commissioning must be performed according to the building automation design by a qualified professional to ensure correct addressing, control integration and safety compliance.

Specifications

• Model code: EK-GD1-DL-4-L-01
• DALI standard: DALI 2 (inputs compliant with IEC 62386)
• Supported constant input voltages: 12 Vdc, 24 Vdc, 48 Vdc
• Supply voltage range: 8 ÷ 53 Vdc
• 4 PWM outputs for 12/24/48 Vdc LED loads
• Supported load types: single colour, Tunable White (TW), RGB, RGBW (DT6 and DT8)
• Output current per channel: 0 ÷ 8 A (single-channel up to 32 A)
• Nominal output power per channel: 96 W (@12 Vdc), 192 W (@24 Vdc), 384 W (@48 Vdc)
• Control: DALI2 DT6/DT8, 0-10V/1-10V, PUSH, potentiometer, switch, sensor, phase cut, DMX512A-RDM, BLE
• PWM frequencies: 390 Hz, 3000 Hz, 10000 Hz
• Protections: polarity reversal, short circuit, open circuit, voltage spikes
• Indicator LEDs and local dip-switch for mode selection
• Master/slave via DMX512A-RDM
• Flicker performance characterised per IEEE 1789-2015
