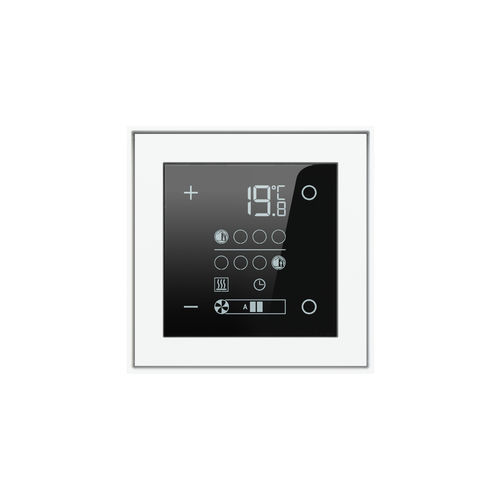

HARMONY AND ESSENTIALITY. KNX room temperature controller. To be used in KNX installations for home and building automation. Measuring of temperature through integrated sensor. User interface with backlighted LCD and four capacitive pushbuttons. Mounting on rectangular Italian-standard wall box. Powered by the bus line. Terminal block for bus, screws and mounting support included in the delivery.
Versions to be completed with a rectangular frame of the series form or flank:
EK-E72-TP-R
'NF (No Frame) versions:
EK-E72-TP-NF-R (black side profile)
EK-E72-TP-NFW-R (white side profile)
The device has to be completed with a rectangular plate EK-PRS-... (to be ordered separately).
Measurement of temperature with integrated sensor with the possibility of sending the value on the bus
2 points (ON / OFF) or proportional (PWM or continuous) room temperature regulation
Heating and cooling modes with the possibility of switching locally or via bus
Operating modes: comfort, standby, economy and building protection with separate setpoints for heating and cooling
Automatic switching of the operating mode depending on presence or opening windows
Weighted average of the two temperature values
Display of temperature (measured, setpoint, external in °C or °F), alarms and errors (with alphanumeric coding)
Reporting the opening of windows
KNX thermostat with LC-display for the independent thermal regulation of a room or a zone. To be used in KNX installations for control of homes and buildings.
The ekinex® 71 Serie room temperature controller is a KNX S-mode device for the independent temperature regulation of a room or a zone in a building.
