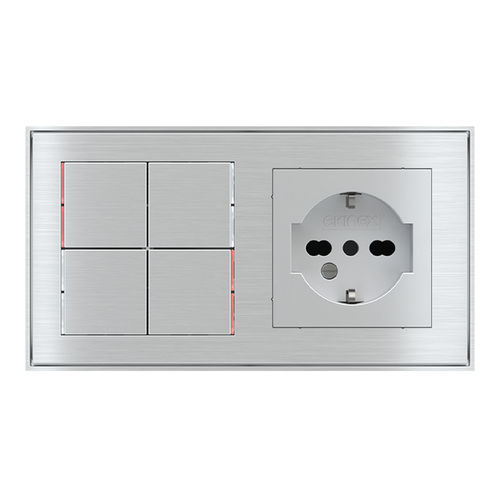

Roller shutter switch EK-E13-TP | EK-PWS-IT

push-buttonelectronicsurface-mount

Description The 4-fold pushbutton of Ekinex® 71 series commands loads on/off switching, controls the dimming of lighting devices, controls motor drives for shutters or executes any other programmable command and control function. Thanks to the integrated temperature sensor, the pushbutton can work as a thermostat for a room or a zone. The LED can be chosen in the colour combinations blue / green or white / red. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is powered by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply. Technical data 30 Vdc power supply by KNX bus Current consumption from bus < 15 mA Delivery Delivery includes a terminal block for connection to the bus, two pairs of fixing screws. Accessories The following accessories are available to be ordered separately: set of 1 square rocker, 2 vertical rectangular rockers, 4 square rockers or 4 horizontal rectangular rockers double frame Form or Flank version double plate with 60 x 55 mm window a plastic adapter metal support for installation onto round or square mounting box (fixing holes 71  mm apart) Functions / Features Pushbutton 4-fold (possibility to configure up to 8 independent functions) 4 freely programmable LED for each channel 2 colour combination available for the LED (blue / green or red / white) Room thermostat function Integrated temperature sensor Plastic casing Connection to bus line with KNX terminal block Frontal programming pushbutton and LED Wall-mounting installation on round or square wall box IP20 protection degree (installed) Weight 70 g (with mounting support)
