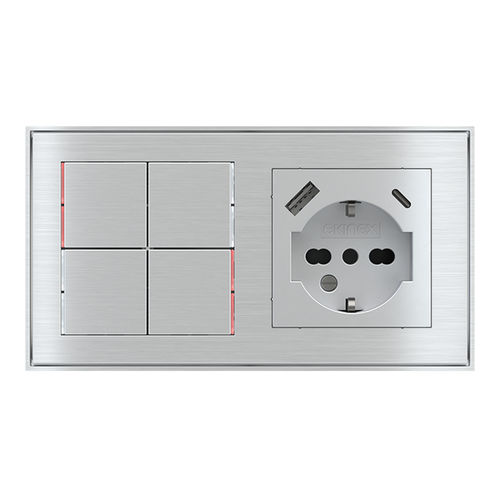

Light switch EK-E12-TP | EK-PWS-IT-USB

for home automation systemsfor roller shuttersfor blinds

HARMONY AND ESSENTIALITY. A1-, 2- or 4-fold KNX pushbutton (max. 8 independent functions) with integrated temperature controller. Mounting on round or square wall boxes. Power supply via bus. To be used in KNX installations for home and building automation. Bus terminal block, fixing screws and mounting support included in the delivery. The device has to be to completed with square or rectangular rockers and a double frame of the series form or flank (to be ordered separately). Mounting with 2-fold plates EK-P2F-... EK-D2F-... EK-S2F-... These 2 fold plates (60x55 mm module) and frames allow to aestetically match conventional switches and socket components with the appearance of Ekinex display and pushbutton units. The Ekinex model EK-PWS-IT-USB socket is a 2P + E 16 A universal device for wall installation, for 2P 2.5 A europlugs, 2P and 2P + E 10 A and 16 A Italian standard plugs, 2P + T 16 A German standard plugs, for powering household appliances. It is equipped with a USB power unit, both type-A and type-C, for charging mobile phones and in general all electronic devices that can be recharged via USB sockets of the same type. Charging of two devices at the same time is allowed. on/off switching of single loads or groups of loads dimming of lighting devices control of motor drives (for roller shutters, blinds, curtains, etc.) function of room temperature controller with integrated temperature sensor detection of brightness via integrated sensor (version 0.1 only) logic functions sending on the bus of values (temperature, brightness, etc.) recalling and saving of scenes switching to forced functioning (lock) Connection of home devices with AC 250 V ~ voltage
