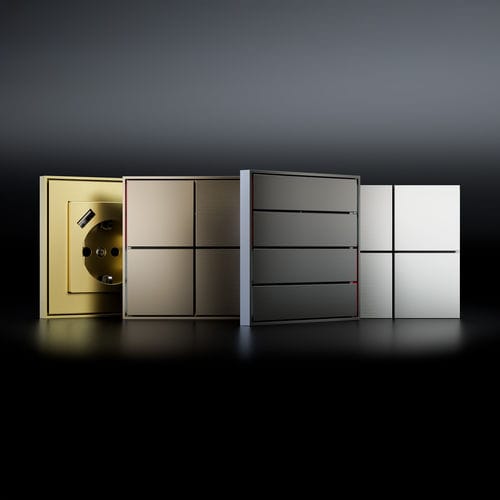

Light switch FF OMNIA

push-buttonsurface-mountmetal

Ekinex® FF OMNIA series devices are low-voltage 5-24 Vdc Dry contact (model EK-ED2-NC-...) or Open Drain (model EK-ED2-NB-...) pushbuttons for the on/off control of consumers, luminaires, the control of motorised drives or scenes and other control functions, e.g. for the actuation of relays on the rear or in junction boxes. The devices are equipped with 8 outputs and 8 inputs for driving the integrated LEDs. The low-voltage outputs allow wide compatibility with many control systems. The devices are designed for flush-mounting on the wall, suitable for residential applications. They integrate perfectly with the aesthetic parts of the Ekinex® FF series. Technical data LED power supply: 5-24 Vdc Contact voltage: 3.3-24 Vdc Dry contact Maximum contact current: < 50mA (200mA for EK-ED2-NB) LED piloting current: settable via dip-switch Control and signalling elements: 8 physical buttons, 8 white LEDs Physical connection via pre-assembled flat cables or rear board with adapter (to be screwed onto the rear of the panel) and spring contacts Examples of use: 1) Connection with universal interfaces equipped with digital inputs and outputs 2) Connection of a series of pulse relays (protection diode not supplied) 3) Plug-and-play connection of inputs and outputs with Crestron C2N-UNI8IO interface Operating temperature: - 5 ... + 45°C Storage temperature: - 25 ... + 55°C Transport temperature: - 25 ... + 70°C Relative humidity: 95% non-condensing Plastic housing Flush-mounted design Degree of protection IP20 (luminaire installed) Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2) Pollution degree 2 (according to IEC 60664-1)
