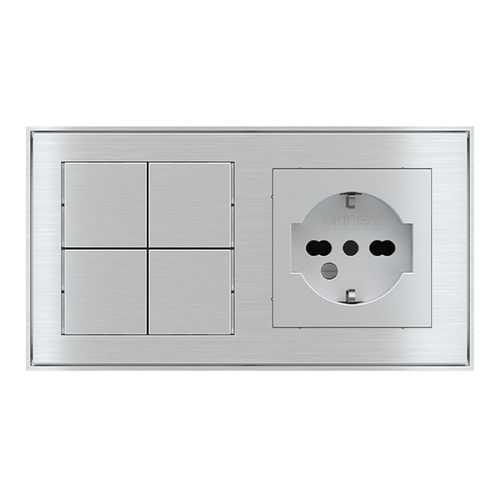

Blind switch EK-E23-TP | EK-PWS-IT

lightfor home automation systemsfor roller shutters

Description The 4-fold pushbutton of Ekinex® 71 series commands loads on/off switching, controls the dimming of lighting devices, controls motor drives for shutters or executes any other programmable command and control function. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is supplied by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply. Technical data 30 Vdc power supply by KNX bus Current consumption from bus < 15 mA Delivery Delivery includes a terminal block for connection to the bus, two pairs of fixing screws. Accessories The following accessories are available to be ordered separately: set of 1 square rocker, 2 vertical rectangular rockers, 4 square rockers or 4 horizontal rectangular rockers double frame Form or Flank version double plate with 60 x 55 mm window a plastic adapter metal support for installation onto round or square mounting box (fixing holes 71  mm apart) Socket point The Ekinex model EK-PWS-IT socket is a 2P + E 16 A universal device for wall installation, for 2P 2.5 A europlugs, 2P and 2P + E 10 A and 16 A Italian standard plugs, 2P + T 16 A German standard plugs, for powering household appliances. Functions / Features Pushbutton 4-fold (possibility to configure up to 8 independent functions) Plastic casing Connection to bus line with KNX terminal block Frontal programming pushbutton and LED Wall-mounting installation on round or square wall box IP20 protection degree (installed) Weight 70 g (with mounting support)
