CS 86-HI is a multi-chamber system for windows and doors that combines aesthetic design, optimal stability and high thermal comfort. Due to the insulating skeleton strips, CS 86-HI achieves Uf-values down to 1.47 W/m²K, making this a highly energy efficient system. Flexible expansion strips in the door vents ensure stability in all conditions. The system provides inside opening windows and inside & outside opening flush doors (up to 3 meters). Furthermore, CS 86-HI doors offer different types of floor connections to meet acoustic, thermal and water requirements.
|
|
Eco system is a high performance aluminium system that combines aesthetic design with energy efficiency. With an Uf-value down to 2.25 W/m2K, this system meets the latest thermal insulation requirements.
Eco system offers a solution for every standard application for windows, window-doors and fluch doors. Furthermore, Eco system allows the fabrication, production and easy assembly of windows and doors in less time. Eco system is undoubtedly the best performing system in its price category.
|
|
|
|
|
|
|

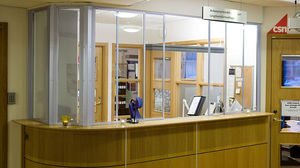

Vertically sliding, electrically operated safety window for indoor and outdoor installation. Manufactured in aluminium or steel and with glass thickness from 6 mm and thicker. For instance float/hardened/laminated glass, insulating glass, impact-resistant glass, fire-resistant glass and bullet-resistant glass. All depending on the specific requirements regarding size and safety level. Some models can be produced with two, three or more moving sections, so that the largest possible part of the opening can be put to use. Aluminium frames are satin anodized as standard and can be finished by powder coating, other forms of anodizing or stainless steel covering. Steel frames are powder coated in white as standard and can be finished by powder coating or stainless steel covering. The sliding window is automatically locked in the closed position and the safety models are provided with interval locking. An anti-fall device will prevent the window from dropping in the event of an accident. Operated by control switch with hold to run buttons.
|
|
|

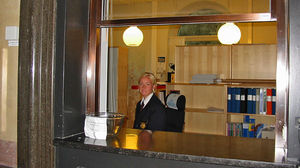

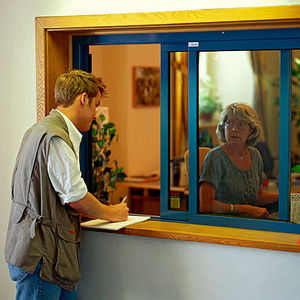

Horizontally sliding electrically operated safety window for indoor and outdoor installation. Manufactured in aluminium or steel and with glass thickness from 6 mm and thicker. For instance float/hardened/laminated glass, insulating glass, impact-resistant glass, fire-resistant glass and bullet-resistant glass. All depending on the specific requirements regarding size and safety level. Aluminium frames are satin anodized as standard and can be finished by powder coating, other forms of anodizing or stainless steel covering. Steel frames are powder coated in white as standard and can be finished by powder coating or stainless steel covering. The sliding window is automatically locked in the closed position and the safety models are provided with interval locking. Operated by control switch with hold to run buttons.
|
|

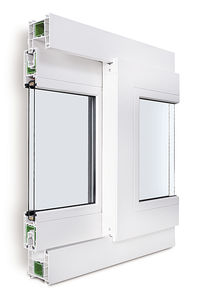

CS 77 is a thermally improved three-chamber system for windows and doors that boasts the optimum combination of safety and comfort. Fibreglass reinforced polyamide strips with ribs and/or hollow chambers guarantee high thermal insulation levels.
The system is available in a variety of aesthetic shapes to match the current architectural trends whilst offering all types of both inward and outward opening windows and doors. A double butt strip
between the frame and vent and a lowered drainage ensure superior wind and water tightness. Different inner and outer colours are possible.
|
|
The SW50 open-joint product is characterised by an aluminium snap-lock glazing bead that guarantees the insulation of the internal wood from external pressure: this makes the installation and the maintenance of the windows easier. Thanks to its extreme versatility, it can be used in several applications for various types of window.
Starpur guarantees a wide range of finishings so as to satisfy the various needs of the clients and to offer a wide style versatility.
|
|

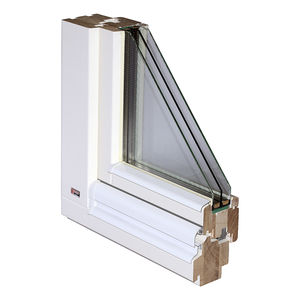

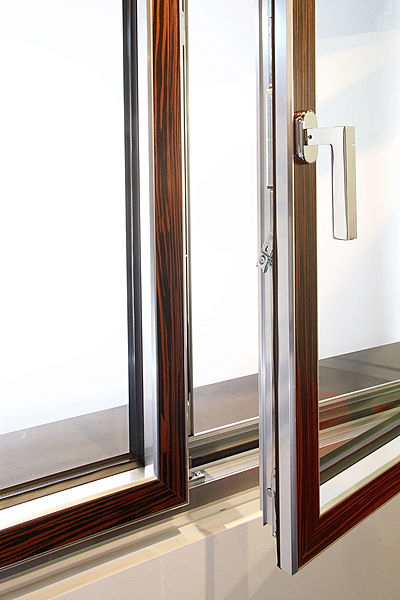

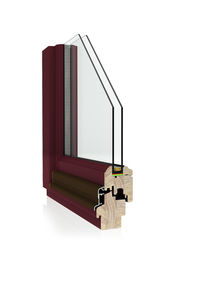

The SK80tt aluminium-wood window blends the quality of the materials with the elegance of its design. The system allows a significant reduction in heating and air conditioning costs of the windows, thanks to the high thermal performance with a Uw value of 1.1 W/m2K.
Starpur guarantees a wide range of finishings so as to satisfy the various needs of the clients and to offer a wide style versatility.
|
|
The Oltreluce project was created to bring together contemporary design and the most advanced technology applied to residential doors and windows.
The origin of the project came from the relationship between contemporary architecture and the sophisticated world of interior design. The exterior and interior are two different yet complementary worlds, but with specific technical and aesthetic needs which have been gathered and interpreted by the Oltreluce concept.
|
|
The SW180s lift & slide window with load of up to 250 Kg per window, is the ideal solution for those who wish to enhance the style of their own home at best. The simplicity of use and the reliability of the system allow it to be used for very large glass-panelled surfaces.
Starpur guarantees a wide range of finishings so as to satisfy the various needs of the clients and to offer a wide style versatility.
|
|
The SW130s in-line sliding window is the ideal solution for the creation of large glass-panelled surfaces, thanks to its load of 150 Kg per wing, capable of enhancing at best the architectural style of your own home.
Starpur guarantees a wide range of finishings so as to satisfy the various needs of the clients and to offer a wide style versatility.
|
|
|
|
|
|
- Frame/panel thickness: 80/98 mm
-Aluminium profile thermal insulation ensured by 26 mm polyamide bars and 3 mm wood-aluminium insulators
- Maximum glass panel thickness: 34 mm
- Possibility to customize the colour of the thermally broken external component.
The intermediate component is painted in anodized silver.
The capability to produce with maximum effectiveness and efficiency, Is what guides Alfa Lum in the design and construction of its windows. On one side there are the benefits offered by the wood, such as the natural warmth and functionality, on the other side the longevity of the aluminium insures tangible benefits in the everyday life.
Alfa Lum uses special screws to join the external aluminium component with the inner wooden component for the fixed part (frame) and for the mobile part (door leaves). The major benefit of this method is that the wooden component can be easily replaced. Moreover this method avoids the need to remove the window and ensures the two sashes do not touch to allow for different expansion rates of the two materials. On the external aspect the stability and the solidity are guaranteed by the structural function of the aluminium, while wood is used for aesthetic purposes. In fact, aluminium frames offer more resistance to twisting forces and damages caused by weather conditions, in order to guarantee global protection, Alfa Lum applies multiple locking hardware to the solid bearing structures, equipped with hooked door latches to the frame located on the window to insure total protection.
The major factors leading the customer to the choice of an Alfa Lum window comes from the indirect advantages once the product is installed.
|
|
Air permeability class 4 - DIN EN 12207
Watertightness class 9A - DIN EN 12208
Concealed sash on the outside - so more glass and less frame
Elegant, narrow sash view on the inside
High sash stability thanks to circumferential adhesion with high-valued tested adhesive tapes between glass and frame
Very good thermal insulation values thanks to large, more-walled thermal dividing profiles
Frame's insulation value Uf = 1.7 W/m²K
Triple circumferential rabbet seal
Generally total-glass-thickness of 30 mm
Easy maintenance thanks to light frame-rate and high self-purifying effect
|
|
Good statics and thermal insulation in the slimline profiles.
Attractive surfaces and colours thanks to the FINSTRAL surface range and to the varnishing in 100 RAL-colours.
Professional building connections for walls, floors, ceiling, ceiling-bridgings and pillar coverings.
|
|
|
With the 5100 Duotherm® range, profiles accommodate a thermal break solution to offer perfect insulation. This series can also be used with thicker glazing for significantly superior sound insulation. For perfect harmony with the rest of the home, a wide range of colours is available (lacquered white and all shades on the RAL colour chart, anodised semi-gloss silver, gold, bronzalumic, 10 wood-look shades and two-tone available for the thermal break series).
|
|
|
|
|
|
Colt Kameleon is a thermally broken natural ventilator, available in a wide
range of sizes, flap options and control options. It is particularly suited for
installation into glazing systems in an unobtrusive way, and can provide both
day to day and smoke ventilation. Kameleon has been tested in accordance with EN 12101-2 (2003), and is CE-marked as a smoke and heat exhaust ventilator.
The frames of both the base and flap are thermally broken and it has continuous inner and
outer seals. The ventilator is suitable for several types of flaps, such as sandwich panels (double skin aluminium with infill material) or glass or polycarbonate.
There is a choice to be made between a narrower or wider flap profile width (either 70 or 99 mm). It can either open from the top with a hinge at the bottom or open from the bottom with the hinge at the top. Panels include polycarbonate, glass, aluminium (insulated and uninsulated). In general any type of panel can be incorporated into the Kameleon flap.
All controls are hidden. Controls are either pneumatic or 230 v ac electric, suitable for day to day ventilation. Or 24 v dc electric, suitable for both day to day
ventilation and smoke ventilation.
The Colt Kameleon dimensions are:
Width: 400 – 2500 mm.
Length: 400 – 2500 mm.
Measured from outer flange to outer flange (max. area 4 m²).
|
|
|
|
|
|
Coltlite is a natural glass louvred ventilator for installation into the façade for both
day to day and smoke ventilation. It is available in a wide range of sizes, louvre
options and control options. Its form and function make it particularly suited to
commercial buildings where both large areas of glass and high performance are
required. Natural ventilation can provide good indoor climate conditions and at the same
time promote energy efficiency. Coltlite is designed to naturally exhaust hot air at
high level or provide fresh air inlet at low level, and can be linked into a building’s
management system for automatic control.
When linked to a smoke control system, Coltlite becomes an effective smoke
extract ventilator. Coltlite can also be installed at low level to provide fresh air
inlet as part of a smoke control system.
The Coltlite features small sized louvres only project a small way into the surrounding space, avoiding clashes with blinds; multiple applications; lets in good quantities of natural daylight; excellent aerodynamic coefficient; slimline electric motor; narrow mullions; double glazed option; thermally broken; good thermal performance; unobtrusive; low air permeability; precision engineered aluminium and stainless steel components. Whether you require a ventilator in a structurally glazed wall or into curtain
walling, the flexibility of Coltlite removes any need to compromise on the design of
a building. The centre pivot design is perfectly balanced permitting the louvres to be opened wide and delivering a precise degree of control.
|
|
|
|
|
|
Having received a training of teacher in Visual arts and History of Art, I naturally appealed, in my activity of manufacturer, with the Trades of Art for which I had been trained.
Thus, in all my architectural achievements, I integrated mosaic, marquetry, stained glasses....etc
I started to work in 1993 with the glassmaking of St Just, and being satisfied with the quality of their blown glass, I was always faithful to him.

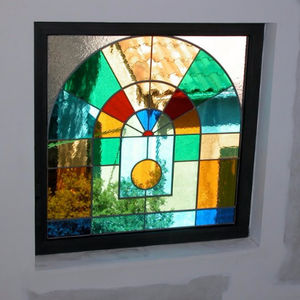

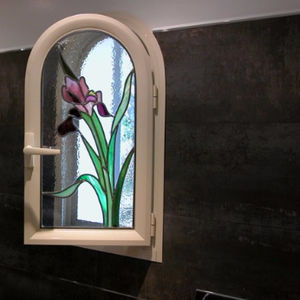

The stained glasses that we present to you were carried out by Nicole Cuomo. They belong to meant artistic of the building "Delacroix" (Place Jean Macé in Lyon). It is about a series of studies on vertical panels which are integrated in the places of life of the last stage. This building was chosen by the architectural services of the town of Lyon to appear among the remarkable achievements of the city.
In addition, we have being studied the project of a sporting and hotel unit on the golf of Lyon Verger which we have just acquired, and who will propose sporting and artistic stays with a particular accent on formation with the trades of arts and in particular the stained glass. The workshops will be directed by Nicole Cuomo.
The hotel, will comprise a hundred and forty rooms, of the particular sights directed on the various points of the grounds of the golf, and in alternation, of the monumental stained glasses which will contribute to give a luminous direction to spaces thus created.
This project will enter in realization during 2010, and naturally I will continue my collaboration with the glassmaking of St Just for the supply of the glass products.
|
|
|
The MB-59S CASEMENT system is intended for production of tilt windows and windows opening outwards – the economical ones and possessing good functional qualities at the same time. This type of windows is intended to be mounted both in wall openings and in mullion-transom facades. The construction is based on the window/door system with a MB-59S thermal break. The structural depth of the window sections is equal to 50 mm for frames and 59 mm for casements. The profiled "omega"-shaped thermal breaks of the width of 16 mm and 22 mm, made from polyamide reinforced with fibreglass are applied. The windows opening outwards may be equipped with two kinds of hinges: rotational and shear-type. The MB-59S CASEMENT system window sections have profiled grooves of dimensions allowing application of enveloped hardware and connecting elements in accordance with the European Union standards. The hardware mounted therein is produced by reputable companies such as Sobinco and Securistyle.
|
|
|
MB-70 is a modern aluminium system intended for realizations of exterior architectural building elements requiring thermal and acoustic insulation, such as: various types of windows, doors, vestibules, display windows or spatial structures.
|
|
The NC 50 I system has been designed to meet the latest and strictest European standards.
The NC 50 I system shares with NC 65 STH many accessories as window and door hinges, tilt & turn opening mechanisms; moreover, both systems employ the same glazing beads and the same gaskets. Also, both systems have the same dimensions of the corner cleats seats for the assembly of the corners. The NC 50 I system enters the traditional systems NC 45 Int. and NC 55 Int. from which it gets the technical features resulting from the development of the most modern and advanced technologies.
|
|
Topaze is a wide range of windows, patio-doors and composite frames, providing optimal suitability for every project.
Features
Inward opening: 1 & 2 leaf, tilt/turn, bottom hung
Outward opening: open out 1 & 2 leaf, top hung, projecting, vertical or horizontal pivoting.
Simple and complex composite frames.
All applications come in traditional or thermal break versions with identical aluminium sightlines.
Choice of inner / outer look in order to fit with the architectural line of the building.
Rounded or straight opening frame sections inside or outside.
Flush fixed and opening frames on the outside.
Glazing system up to 33mm in order to combine thermal, acoustic and security performance.
|
|
|
Highly thermally insulated, stable and for universal use - benefits that make the Schüco AWS 70.HI (High Insulation) aluminium windows a genuine all-rounder for new buildings and renovation projects. This high-quality energy-saving window has all the unbeatable benefits of aluminium: durability and stability, narrow face widths and a variety of design options, even with large windows.
|
|
|
The pivoted window MB-59S PIVOT is a part of the window/door system with thermal break MB-59S of ALUPROF S.A. Company. The MB-59S PIVOT system is designed for producing windows of vertical or horizontal rotation axis requiring thermal and acoustic insulation, economic structures, but also having good functional qualities. This type of windows is intended to be mounted both in brick wall openings and in mullion-transom facades.
|
|
Reversible windows
The reversible window is especially suitable for multi-storey buildings where window cleaning must be performed from the inside. The sash can be rotated by up to 170° to allow cleaning from the inside. A safety restrictor is triggered when the window is opened to 5 cm. When this is disengaged, the window can be reversed to the cleaning position where an automatic catch keeps the window in place.
|
|
Aluflam A/S produces fire resistant Windows with a range of classifications: EI15 - EI30 - EI45 - EI60 in system AF85 or AW50 and EI90 in system AW60.
Aluflam fire resistant windows are produced in our own aluminium system, tested and approved by the Danish Institute of Fire and Security Technology and certified by European testing bodies.
Variations: Fixed Frame, Facade, Curtain Wall, Glass Wall, Tophung window, Sidehung window, Sliding window
|
|
When renovating old steel windows or even when fitting out new modern buildings, the slimline steel look of the Schüco AWS 70 ST.HI (Steel High Insulation) aluminium window offers attractive design options, including improved thermal insulation. Another design highlight: stylish sash bar options can be used to draw particular attention to the hand-crafted finish of a traditional window construction.
This steel design of the Schüco AWS 70.HI standard window also has all the unbeatable benefits of aluminium: durability and stability, narrow face widths and a variety of design options, even with large windows.
|
|
|
|
|
|
|

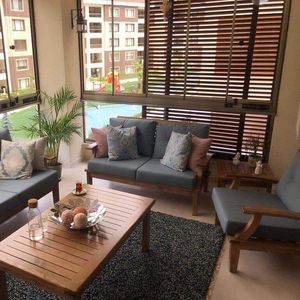

MB - 23P is the aluminium system destined for balcony glass enclosures. The concept of this solution involves the horizontally sliding windows. Windows basing on this system protect the balcony open space against the unfavourable atmospheric conditions such as: wind, rain, snow as well as dirt and noise. At the same time, the MB-23P system structures hinder burglary, which is particularly essential while living on the ground floor. The structural depth of sections is equal to 53 mm (frame) and 23 mm (casement). Owing to external housing, the structure built basing on the MB-23P system has the effective water drainage and ventilation systems from the window glass chambers and from the chamber between casement and a frame. The window casements can be filled with a single pane of the thickness equal from 4 to 8 mm, or with safe glass of the thickness equal to 6.4 mm. Thickness of the glass is selected depending on the height at which the balcony is situated, its location and the casement overall dimensions.
|
|
All Glass Opening Window Wall System With Aluminum Rails And Frame
The SL25 All Glass Window Wall System easily slides out-of-sight to make interior spaces completely open to the exterior.
|
|
|
YSW 400 T is a heavy commercial rated sliding window that offers ease of operation and thermal performance. The window is thermally broken by YKK AP MegaTherm® technology to conserve energy and reduce operating costs. Standard heavy-duty hardware provides years of worry free operation.
|
|
|
|
