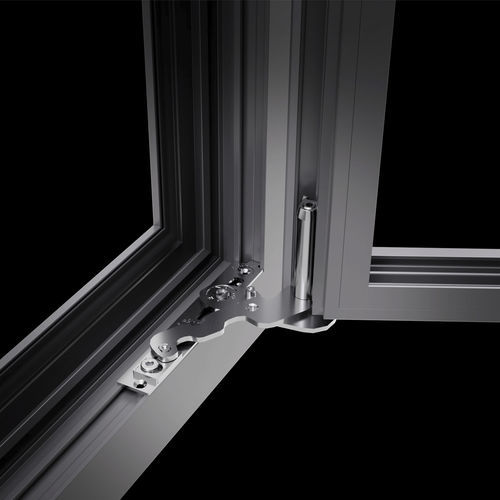

Tilt-and-turn window C.H.I.C. 100

aluminumcasement1 leaf

Complete system for the construction of concealed tilt-and-turn windows with load capacities of up to 100 kg and with 180° sash opening. Available in the standard, logic and microventilation versions. Technical Features Making a CHIC 3D 100 Tilt-and-Turn mechanism requires: • Set of hinges + arms • Set of mechanisms for cremones, window handles and NP SUPRA window handles • Cremone, window handle or NP SUPRA window handle (available in different models to choose from in the specific catalogue section) ShieldMax5 treatment (Class 5 corrosion resistance according to the UNI EN 1670 standard). Adjustments The adjustments are micrometric and independent. Standard microventilation Micro-ventilation enables having simultaneously both the tilt-and-turn position and micro-ventilation (precision opening of the sash) on the casement, for better air exchange. Logica The logical operation consists in first tilt-and-turn opening (with the cremone at 90°) and secondly side-hung opening (with the cre-mone at 180°). Its use is particularly recommended in public buildings (schools, hospitals, etc.) in combination with a cremone with a key in order to have only tilt-and-turn window opening for safety reasons and to allow full opening only for staff with the key.
