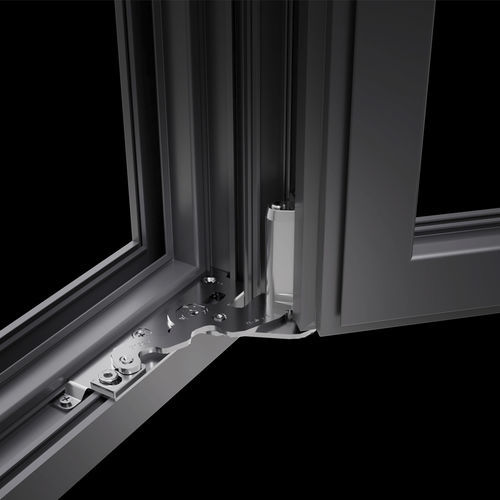

Tilt-and-turn window C.H.I.C. 130 ERRE

aluminumcasementconcealed opening

Complete system for the construction of concealed tilt-and-turn windows with load capacities of up to 130 kg and with 180° sash opening.
Available in the standard, logic and micro-ventilation versions.

Technical Features
Making a CHIC 3D 130 ERRE Tilt-and-Turn mechanism requires:
• Set of hinges + arms
• Set of mechanisms for cremones, window handles and SUPRA 7 window handles
• Cremone, window handle or SUPRA 7 window handle (available in different models to choose from in the specific catalogue section)

Adjustments
The adjustments are micrometric and indipendent.

Standard microventilation
Micro-ventilation enables having simultaneously both the tilt-and-turn position and micro-ventilation (precision opening of the sash) on the casement, for better air exchange.

Logica
The logical operation consists in first tilt-and-turn opening (with the cremone at 90°) and secondly side-hung opening (with the cre-mone at 180°). Its use is particularly recommended in public buildings (schools, hospitals, etc.) in combination with a cremone with a key in order to have only tilt-and-turn window opening for safety reasons and to allow full opening only for staff with the key.
