Window hinge C.H.I.C. BOTTOM-HUNG
aluminumconcealedhome

Window hinge - C.H.I.C. BOTTOM-HUNG - GIESSE - aluminum / concealed / home
Window hinge - C.H.I.C. BOTTOM-HUNG - GIESSE - aluminum / concealed / home
Window hinge - C.H.I.C. BOTTOM-HUNG - GIESSE - aluminum / concealed / home - image - 2
Window hinge - C.H.I.C. BOTTOM-HUNG - GIESSE - aluminum / concealed / home - image - 3
Add to favorites
Compare this product

Characteristics

Product applications
window
Material
aluminum
Technical characteristics
concealed
Market
home, commercial
Style
minimal
Other characteristics
Made in Italy, high-performance, commercial

Description

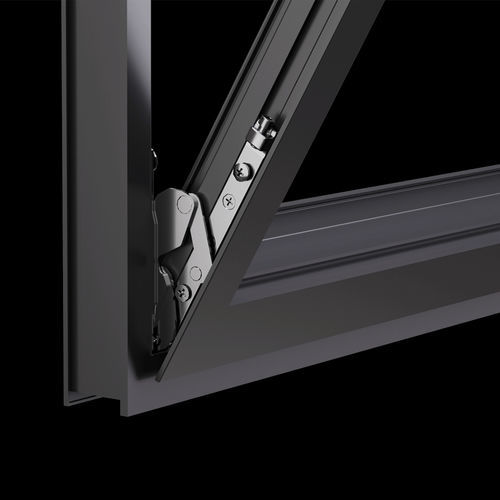

Hinge set for concealed Bottom-hung window

Technical Features
Total opening of the 180° hinge to facilitate its assembly.
Fixing on the frame without machining, by means of pre-assembled cams.
Sash height (+2.5 ÷ -0.5 mm) and compression (+1.4 ÷ -0.6 mm) adjustment, micrometric and independent of each other.
The hinge is completed by 2 raising components that improve its stability.

Capacities
• Maximum load capacity (*) 250 .
• Minimum height (*) 3,000 mm.
• Maximum width 2,500 mm. Over 1,500 and 2,000 mm it is necessary to use no. 1 or no. 2 Raising components 04363.
(*) these are a consequence of the opening limiter used (see raising component use scheme in the technical datasheet).
