Basin stormwater management module CHAMBERMAXX®

in-ground

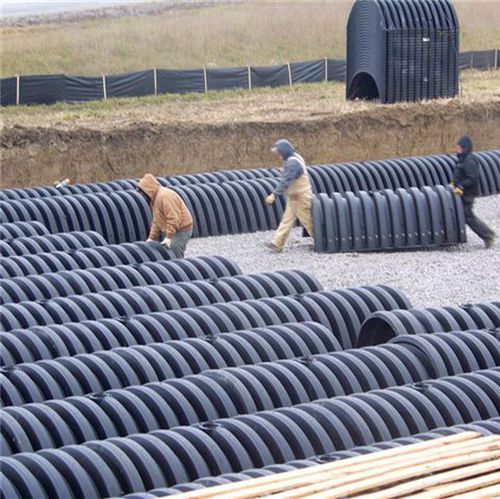

The ChamberMaxx corrugated, open-bottom plastic infiltration chamber system allows you to meet stormwater runoff reduction requirements and maximize available land space by providing economic infiltration below grade. ChamberMaxx maximizes storage volume in a small footprint, and its low profile shape is ideal for sites with shallow footprints. The ChamberMaxx corrugated, open-bottom plastic infiltration chamber system allows you to meet stormwater runoff reduction requirements and maximize available land space by providing economic infiltration below grade. By utilizing subsurface infiltration, space is preserved for development or green space, runoff is reduced or eliminated, and groundwater recharge can occur. ChamberMaxx maximizes storage volume in a small footprint, and its low profile shape is ideal for sights with shallow footprints. Each chamber provides 47 ft3 (1.3 m3) of storage. The integrated end caps eliminate the expense associated with loose end caps that are common on many chamber systems and add to chamber strength. ChamberMaxx is manufactured per ASTM F 2418-05 and is structurally designed to exceed HS-20/HS-25 live loads in accordance with AASHTO LRFD design specifications for stormwater chambers. 1. Each chamber provides 47 ft3 (1.3 m3) of storage - Maximized storage space 2. Low profile - Allows for infiltration on sites with shallow footprint 3. Integrated end caps - Cost savings; added chamber strength 4. Manufactured per ASTM 2418 - Strength and durability 5. Lightweight - Installed by hand without the need of heavy equipment
