751 w...1000 w radiator LINEA PLUS

1001 w...1500 w501 w...750 w0...500 w

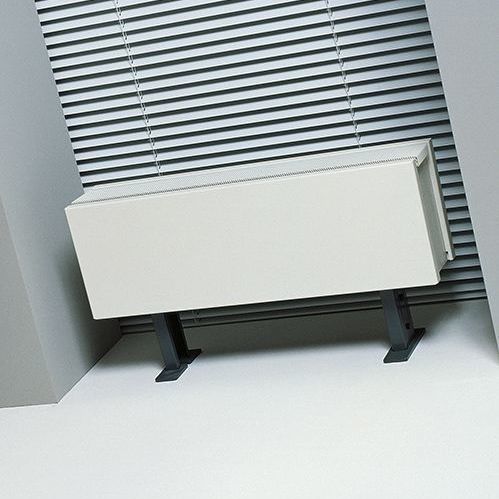

Discreet, slim-line design with curved grille and flat front panel. For spaces with large windows, glazed façades, for window displays, conservatories, under window seats and for dwarf walls. Smooth design No heat radiation towards the underlying glass, so no heat loss Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission Safe and low contact temperature Options Feet in the same colour as the casing For feet in the same colour as the casing, repeat the colour code after the code of the radiator. Extended adjustable feet For installation on a rough subfloor or computer floor. For extended feet in neutral grey, add /AL to the ordering code ex.: LINF. 020 050 10.XXX/AL For extended feet in the same colour as the casing, add /AL to the ordering code and repeat the colour code. Material - Low-H2O heat exchanger is composed of round, seamless circulation tubes made of pure red copper, with pure aluminium fins and two brass collectors for left or right 1/2” same end connection. Air vent elbow (standard) or automatic air vent (twin) 1/8” and drain plug 1/2” are included. Pressure test: 20 bar Working pressure: 10 bar - Brackets: galvanised steel plate thickness 1 mm, dark grey lacquered RAL 7011, with a maximum intermediate distance of 1.05 m - Front panel: electrolytic, galvanised steel plate of 1.25 mm thick - Side panels: electrolytic, galvanised steel plate of 1 mm thick - Top grille: electrolytic, galvanised steel plate of 1 mm thick with small round perforations - The free-standing model: front and back panels are identical, grille and side panels come adapted to this model.
