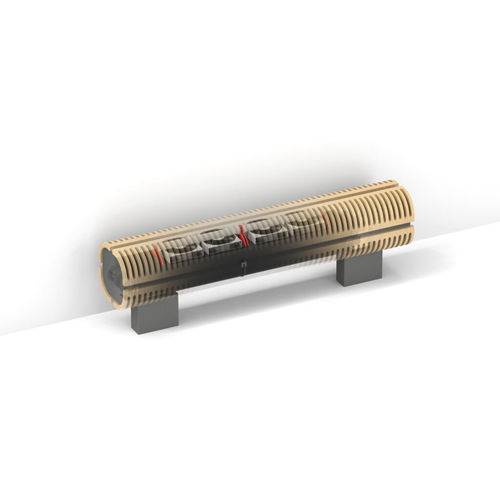

Warm power, noble wood
Developed for the house of the future, "Living Tomorrow", in Vilvoorde-Belgium.
Casing with curved wooden shell finished in high-grade veneer in 9 wood finishes.
Hidden control with pre-mounted connection set and TRV head.
Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission
Safe and low contact temperature
Connection sets
Included valve, sleeve couplings and thermostatic head, connection at either end, inside the foot.
Material
DBE technology.
Low-H2O heat exchanger is composed of round, seamless circulation tubes made of pure red copper, with pure aluminium fins and two brass collectors for left or right 1/2” same end connection.
- air vent 1/8” and drain cock 1/2” are included
- pressure test: 20 bar
- working pressure: 10 bar
- covering with integrated grilles consisting of four curved veneered wood laminate panels measuring minimum 16 mm. Partly FSC labelled
- chassis from electrolytic, galvanized steel plate of 1.25 mm thick, with integrated Jaga valve
- feet with pipe for guards lacquered in sandblast grey metallic 001
Colour
Heat exchanger electrostatically lacquered with anthracite grey epoxy-polyester RAL 7024, gloss degree 70%.
Sides and chassis in the colour sandblast grey metallic lacquered.
The coating is a scratch resistant epoxypolyester powder, sprayed electrostatically and baked at a temperature of 200 °C. UV-resistant due to ASTM G53.
Panels with integrated grilles finished with veneer, inside koto veneer, outside in: oak / oak bleached / mahogany / oak wenge-colour / beech / beech bleached / maple / walnut / zebrano veneer (Partly FSC labeled).
