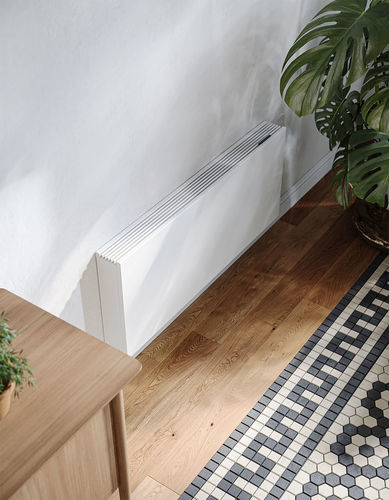

Hot water radiator Strada Hybrid MM

metalbrasswall-mounted

Product overview
Strada Hybrid MM is a low-temperature heat pump radiator with a central connection. It is delivered as a ready-made, fully pre-assembled plug & play unit including concealed faucets and an integrated thermoelectric actuator with fingertip control. The unit supports heating and non‑condensing cooling and is optimised for high output at low water temperatures.

Key features

• Hybrid technology for increased output at low water temperatures
• Optimised for heat pumps (heating and non‑condensing cooling)
• Delivered as a completely pre-assembled unit including concealed faucets
• Invisible integrated thermoelectric actuator with fingertip touch control
• Central connection simplifies installation (same connection regardless of height, length or model)
• Low-H2O heat exchanger integrated with valve insert
• Fan unit with operating panel, control system and 24 VDC power supply
• Fully automatic control system
• 30 years warranty (manufacturer information)

Standard delivery

• Completely pre-assembled with tight designer casing
• Low-H2O heat exchanger with valve insert, thermoelectric actuator and air vent
• Fan unit with operating panel, control system and 24 VDC power supply
• Thermostatic control with touch operation in temperature mode
• Euroconus connector block for wall or floor connection
• Note: the heater is not equipped with a condensation monitor; if used for cooling a condensation monitor must be integrated in the installation

Composition

• Hybrid technology assembly
• Low-H2O heat exchanger
• Thermoelectric actuator / motor
• Valve integrated in the brass collector
• H-block
• Central connection
• Casing and control panel
• AC adapter / 24 VDC power supply

Connector block options (examples)

• Left supply – to the wall: Eurocone, H-block, two-pipe / one-pipe — code: SW
• Left supply – to the floor: Eurocone, H-block, two-pipe / one-pipe — code: SF
• Right supply – to the wall: Eurocone, Crossflow H-block, 2-pipe — code: CW
• Right supply – to the floor: Eurocone, Crossflow H-block, 2-pipe — code: CF
• 3/4" Eurocone sleeve coupling codes for precision metal tube: 112 (12/1), 114 (14/1), 115 (15/1), 116 (16/1), 118 (18/1)
• Synthetic or RPE/ALU sleeve coupling codes: 612 (12/2), 614 (14/2), 616 (16/2), 618 (18/2), 615 (15/2.5), 619 (16/1.5), 620 (20/2)

Outputs
Height [cm] | Length [cm] | Type [cm] | Speed | Light Cooling (16/18/27°C) [Watts] | Heating (35/30/20°C) [Watts] | Heating (55/45/20°C) [Watts] | Heating (75/65/20°C) [Watts] | Sound pressure [dB(A)] | Electric power consumption [Watt] | Ordering code
35 | 60 | 11 | 1 | 191 | 246 | 647 | 1142 | 26,0 | 4,8 | STRW 035 060 11 XXX MM D01 XX XXX
35 | 60 | 11 | 2 | 205 | 263 | 693 | 1223 | 30,0 | 5,5 | STRW 035 060 11 XXX MM D01 XX XXX
35 | 60 | 11 | 3 | 242 | 311 | 819 | 1447 | 40,0 | 7,2 | STRW 035 060 11 XXX MM D01 XX XXX
35 | 80 | 11 | 1 | 276 | 355 | 933 | 1648 | 26,0 | 6,0 | STRW 035 080 11 XXX MM D01 XX XXX
35 | 80 | 11 | 2 | 296 | 381 | 1002 | 1770 | 30,0 | 6,7 | STRW 035 080 11 XXX MM D01 XX XXX
35 | 80 | 11 | 3 | 358 | 460 | 1210 | 2136 | 41,8 | 9,0 | STRW 035 080 11 XXX MM D01 XX XXX
35 | 100 | 11 | 1 | 358 | 460 | 1210 | 2136 | 26,0 | 7,0 | STRW 035 100 11 XXX MM D01 XX XXX
35 | 100 | 11 | 2 | 385 | 495 | 1303 | 2301 | 30,0 | 7,7 | STRW 035 100 11 XXX MM D01 XX XXX
35 | 100 | 11 | 3 | 473 | 608 | 1600 | 2825 | 43,0 | 10,7 | STRW 035 100 11 XXX MM D01 XX XXX
35 | 120 | 11 | 1 | 437 | 562 | 1479 | 2612 | 26,0 | 8,7 | STRW 035 120 11 XXX MM D01 XX XXX

Documentation & media
Product documentation (manuals, brochures, selection tools) and an installation video are available from the manufacturer. The product page lists manuals, marketing materials, product description and brochure as downloadable documentation, and an installation video demonstrating setup and operation.

Technical specifications

• Brand: Jaga
• Model / commercial name: Strada Hybrid MM
• Connection: Central connection
• Technology: Hybrid Low-H2O heat exchanger + fan unit
• Control: Integrated thermoelectric actuator with touch control, fully automatic control system
• Power supply: AC adapter / 24 VDC (fan control and electronics)
• Delivery state: Pre-assembled unit including concealed faucets and Euroconus connector block
• Applications: Heating and non-condensing cooling, optimised for heat pumps
• Accessories / options: Towel rail, Mikado grille, multiple connector block variants (SW, SF, CW, CF), sleeve coupling codes for various tube Ø
• Acoustic & electrical data: sound pressure and electric power consumption vary by size/speed (see outputs table above)
• Warranty: manufacturer states 30 years warranty (product information)
