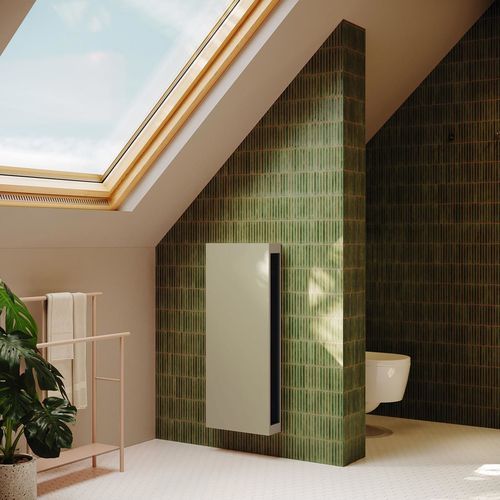

Hot water convector VERTILINA HYBRID

0...500 wmoderngalvanised steel

Brief description
Vertilina Hybrid is Jaga's versatile vertical solution for energy-efficient low-temperature water cooling and heating. Its high efficiency delivers fast, comfortable climate control year-round. The slender vertical design requires minimal wall footprint, making it suitable where space is limited. Vertilina Hybrid combines quick installation with reliable performance in a compact and safe emission system.

Advantages

• Space-saving design with a slim vertical profile
  With a nominal width of only 41 cm, it frees up interior space.
• Seamless integration into any interior concept
  Available in 11 heights and in all Jaga design colours.
• Cooling and heating from a single system
  Condensation-free cooling combined with efficient low-temperature water heating.
• Proven technology with long service life
  The Low-H2O heat exchanger ensures fast response and high efficiency, with a 30-year warranty.

Emissions
Type | Height (H) [cm] | Length (L) [cm] | Position [1-2-3] | Cooling without condensation (16/18/27) [Watts] | Heating (35/30/20) [Watts] | Heating (45/40/20) [Watts] | Heating (50/45/20) [Watts] | Heating (55/45/20) [Watts] | Sound pressure level [dB(A)] | Water content (L) | Power consumption [Watts] | Ordering code
11 | 90 | 41 | 1 | 253 | 396 | 720 | 882 | 955 | 26.0 | 1.2 | 9.9 | VLAW 090 41 11 XXX 104 R DDD
11 | 90 | 41 | 2 | 273 | 438 | 796 | 975 | 1056 | 30.0 | 1.2 | 11.5 | VLAW 090 41 11 XXX 104 R DDD
11 | 90 | 41 | 3 | 293 | 491 | 891 | 1091 | 1182 | 34.8 | 1.2 | 12.3 | VLAW 090 41 11 XXX 104 R DDD
16 | 90 | 41 | 1 | 329 | 551 | 1000 | 1224 | 1327 | 26.0 | 1.8 | 9.0 | VLAW 090 41 16 XXX 104 R DDD
16 | 90 | 41 | 2 | 354 | 584 | 1061 | 1299 | 1408 | 30.0 | 1.8 | 9.8 | VLAW 090 41 16 XXX 104 R DDD
16 | 90 | 41 | 3 | 372 | 604 | 1097 | 1343 | 1456 | 32.4 | 1.8 | 12.0 | VLAW 090 41 16 XXX 104 R DDD
11 | 100 | 41 | 1 | 292 | 456 | 828 | 1013 | 1098 | 26.0 | 1.3 | 11.1 | VLAW 100 41 11 XXX 104 R DDD
11 | 100 | 41 | 2 | 315 | 502 | 913 | 1117 | 1211 | 30.0 | 1.3 | 12.7 | VLAW 100 41 11 XXX 104 R DDD
11 | 100 | 41 | 3 | 342 | 572 | 1040 | 1273 | 1380 | 35.5 | 1.3 | 14.4 | VLAW 100 41 11 XXX 104 R DDD
16 | 100 | 41 | 1 | 376 | 630 | 1144 | 1401 | 1518 | 26.0 | 2.0 | 10.6 | VLAW 100 41 16 XXX 104 R DDD

Standard delivery

• Fully preassembled vertical radiator with 1.25 mm electrolytically galvanized steel casing and hexagonal side perforations for air intake and exhaust. Easy to hang on the rear panel.
• Rear panel with Sendzimir-galvanized steel fixing points.
• Low-H2O heat exchanger with 1/2'' air vent and 1/2'' drain plug.
• 230 VAC connection with waterproof cable gland (IP68).
• Ventilation rail, supply and control optionally integrated.
• Completely concealed connection possible; extension pipes for under-cover connections provided as standard.
• The convector is not supplied with condensation monitoring; detection must be integrated into the installation if required.

Features / technical specifications

• Compact vertical design — nominal width 41 cm.
• Available in multiple heights (e.g. 11 and 16 in the presented variants).
• Dual function: condensation-free cooling and low-temperature water heating.
• Low-H2O exchanger for fast response and high efficiency; 30-year warranty.
• Water content varies by model (approx. 1.2 L to 2.0 L depending on height).
• Low sound levels (approx. 26–35 dB(A) depending on configuration and position).
• Electrical power consumption in ventilated operation indicated in the emissions table (values in Watts for each configuration).
• 1.25 mm galvanized steel casing; Sendzimir rear panel.
• 230 VAC supply, IP68 cable gland provided.
• Discrete/invisible connection possible; extension pipes supplied as standard.
