Hot water convector LINEA PLUS HYBRID

modernmetalwhite

Product overview
A Jaga classic with a discreet, slimline design with perforated grill and flat front panel, upgraded with Hybrid technology for optimized output. Experience year-round comfort with a sleek convector that cools in summer and heats in winter. Designed for seamless integration into modern interiors.

Key features

• Slimline convector with perforated grill and flat front panel
• Hybrid technology: combined heating and cooling capability
• Low-H2O heat exchanger with dirt and dust repellent coating (graphite grey)
• Available with different control systems: JAGA ACO (D09), JAGA BMS 0-10V (D03), JAGA TPT (D01)
• Fan unit supplied with operation, control and 24VDC power supply

JAGA ACO (D09)

• Fan speed selected manually in 3 modes via the control panel.
• If water temperature < 24°C and air warmer than heat exchanger, fans start and the unit cools the area.
• If water temperature > 28°C and air colder than water, fans start and the unit heats the area.
• The unit automatically switches between heating, cooling and standby modes.

JAGA BMS 0-10V CONTROL (D03)

• Fan speed controlled by an external 0-10V (DC) signal from a thermostat, home automation or building management system.
• Fans start when control voltage ≥ 1V and water temperature > 28°C or < 24°C; speed increases proportionally to control voltage (10V = max speed).
• If equipped with a thermoelectric valve motor connected to internal electronics, the valve opens when control voltage > 1V.

JAGA TPT (D01)

• Fan speed automatically controlled based on preset comfort temperature via fingertip controls; allows very silent operation once comfort temperature reached.
• If fitted with a thermoelectric valve motor connected to internal electronics, the unit acts as room thermostat and will switch the water flow on/off based on room temperature measurement.
• If room temperature is set/controlled by another system that enables/disables water flow, TPT can be used only to modulate fan support.
• Fans start for cooling when heat exchanger water < 24°C; fans start for heating when water > 28°C.

Standard delivery (summary)

• Low-H2O heat exchanger with dust-repellent coating (graphite grey)
• Wall brackets and mounting set
• Angled air vent (standard and Height 020) or extended 1/8" air vent (twin) and 1/2" drain cock
• Partially assembled casing for bottom-left or bottom-right connection
• Easy-to-install fan unit with operation, control and 24VDC power supply

Composition of the order code
The order code is built from parts that identify product, height, length, type, case colour and control system. Example structure (parts): LINW / height (e.g. 035) / length (e.g. 050) / type (e.g. 11) / case colour (XXX) / control system (DDD).

Outputs (excerpt table)
Header: Height [cm] | Length [cm] | Type | Position | Light Cooling (16/18/27°C) [Watts] | Heating (35/30/20°C) [Watts] | Heating (45/40/20°C) [Watts] | Heating (50/45/20°C) [Watts] | Heating (55/45/20°C) [Watts] | Sound Pressure Level [dB(A)] | Power consumption [Watts] | Water Volume [l] | Ordercode

Rows (examples):
35 | 50 | 11 | 1 | 148 | 190 | 366 | 457 | 499 | 26,0 | 3,6 | 3,0 | LINW 035 050 11 XXX DDD
35 | 60 | 11 | 1 | 191 | 246 | 474 | 592 | 647 | 26,0 | 4,8 | 4,0 | LINW 035 060 11 XXX DDD
35 | 70 | 11 | 1 | 234 | 301 | 580 | 724 | 791 | 26,0 | 5,5 | 5,0 | LINW 035 070 11 XXX DDD
35 | 80 | 11 | 1 | 276 | 355 | 684 | 854 | 933 | 26,0 | 6,3 | 5,0 | LINW 035 080 11 XXX DDD
35 | 90 | 11 | 1 | 317 | 408 | 786 | 982 | 1.072 | 26,0 | 6,7 | 6,0 | LINW 035 090 11 XXX DDD
35 | 100 | 11 | 1 | 358 | 460 | 887 | 1.107 | 1.210 | 26,0 | 7,8 | 7,0 | LINW 035 100 11 XXX DDD
35 | 110 | 11 | 1 | 401 | 516 | 995 | 1.242 | 1.357 | 26,0 | 8,4 | 7,0 | LINW 035 110 11 XXX DDD
35 | 120 | 11 | 1 | 437 | 562 | 1.084 | 1.354 | 1.479 | 26,0 | 8,9 | 8,0 | LINW 035 120 11 XXX DDD
35 | 140 | 11 | 1 | 515 | 662 | 1.277 | 1.595 | 1.743 | 26,0 | 10,1 | 9,0 | LINW 035 140 11 XXX DDD
(The product page contains a full table of outputs covering multiple heights and lengths with corresponding sound levels, power consumption and water volume values.)

Images / Gallery

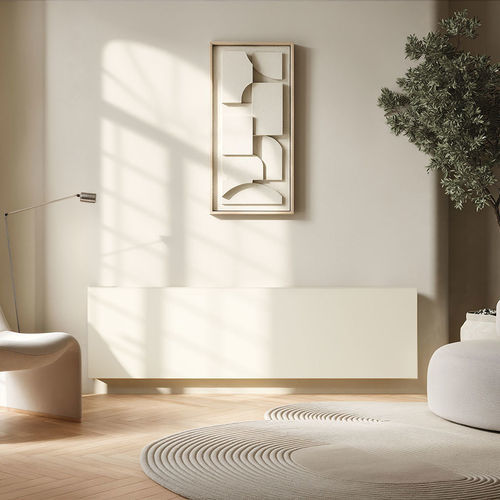

Packshot and multiple product photos showing external finish options and installation examples are provided on the product page.

Caractéristiques / spécifications techniques

• Brand: Jaga
• Denomination: Linea Plus Hybrid
• Heat exchanger: Low-H2O type with anti-dust coating
• Cooling activation threshold: water temperature < 24°C
• Heating activation threshold: water temperature > 28°C
• Fan power supply: 24 V DC (integrated fan unit)
• Available control systems: ACO (D09), BMS 0-10V (D03), TPT (D01)
• Standard delivery includes brackets, vents, drain cock and partially assembled casing
• Acoustics: example sound pressure level 26 dB(A) for many configurations (varies by model size)
• Water volume and power consumption vary by size (examples shown in outputs table)
