Hot water convector MINI HYBRID

contemporarymetalblack

Overview

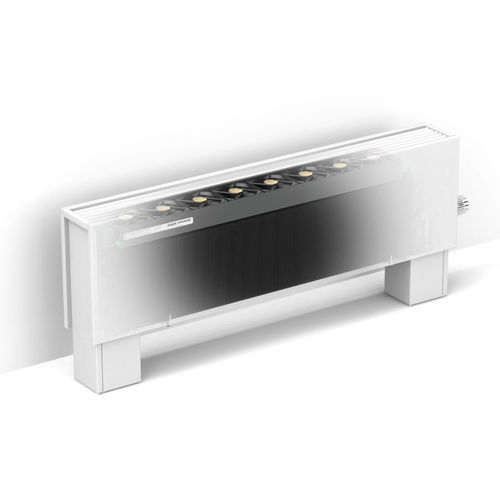

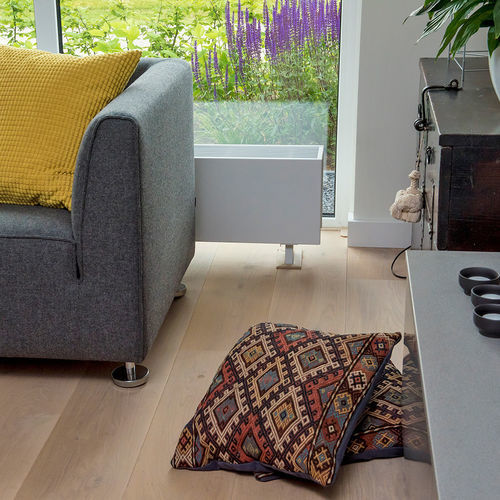

The Mini Freestanding Hybrid by Jaga is a freestanding hybrid radiator on legs. Strikingly inconspicuous. For spaces with large windows, glazed façades, for window displays, conservatories, under window seats and for dwarf walls.

Key uses / features

• For spaces with large windows, glazed façades, window displays, conservatories, under window seats and dwarf walls
• Reduced energy consumption and maximum heat output by the ultra conductive Low-H2O heat exchanger
• Safe and low contact temperature

Output (table header)
Height [cm] | Length [cm] | Type | Position | Heating (75/65/20 [Watts]) | Heating (55/45/20 [Watts]) | Heating (45/35/20 [Watts]) | Heating (35/30/20 [Watts]) | Light cooling (Non-condensing, 25°C D.B., 50% R.V.) [Watts] | Sound pressure level [dB(A)] | Electric power consumption [Watts] | Air flow [m3/h] | Order code

Standard delivery

• Fully pre-assembled unit with integrated feet, consisting of: one-piece casing, protective pipe guard, DBH set incl. control unit of your choice and 24 VDC power supply
• Low-H2O heat exchanger
• Removable grille
• Jaga thermostatic H-valve and sleeve couplings. Connections 3/4" Eurocone in the foot, left or right
• Air bleed valve 1/8"
• Collar in stainless steel effect for the connection side
• Fixed feet: height 12.5 cm

Dimensions
Dimension diagram available for the Mini freestanding hybrid (illustration present on the product page).

Standard colours

• 133 / Traffic white Soft touch
• 001 / Sandblast grey
• 145 / Off-black

Colours of nature (examples shown)

• 157 / Sandstone
• 158 / Siena ochre
• 159 / Honey yellow
• 160 / Chocolate
• 154 / Soft grey pink
• 155 / Millenium pink
• 111 / Flame red
• 156 / Purple red
• 150 / Soft grey blue
• 151 / Pigeon blue
• 152 / Gentian blue
• 153 / Midnight blue
• 147 / Soft green beige
• 148 / Pale green
• 149 / Emerald green
• 113 / English green

Precious metals (examples shown)

• 054 / Aluminium
• 057 / Titanium
• 058 / Rose gold
• 059 / Gold look
• 060 / Copper look
• 061 / Gun metal
• 062 / Stainless steel look
• 063 / Silver look
• 055 / Corten steel look
• 064 / Transparent varnish glossy
• 065 / Transparent varnish (mat)

Subtle & discrete (examples shown)

• 101 / Pure white Soft touch
• 102 / Cream Soft touch
• 109 / Iron grey Soft touch
• 131 / Anthracite grey Soft touch
• 104 / Black Soft touch

Characteristics / technical specifications

• Type: freestanding hybrid radiator on legs (Mini)
• Heat exchanger: ultra-conductive Low-H2O technology for reduced energy consumption and high heat output
• Standardly supplied with DBH set (Dynamic Boost Hybrid) including control unit and 24 VDC power supply
• Connections: 3/4" Eurocone in the foot (left or right)
• Includes Jaga thermostatic H-valve and sleeve couplings
• Air bleed valve: 1/8"
• Protective pipe guard and removable grille included
• Fixed feet height: 12.5 cm (integrated feet)
• Delivery state: fully pre-assembled
• Safe and low surface/contact temperature suitable for low surface temperature (LST) requirements
• Dimension and technical output tables available on product page (heating and light cooling performance headers listed)
