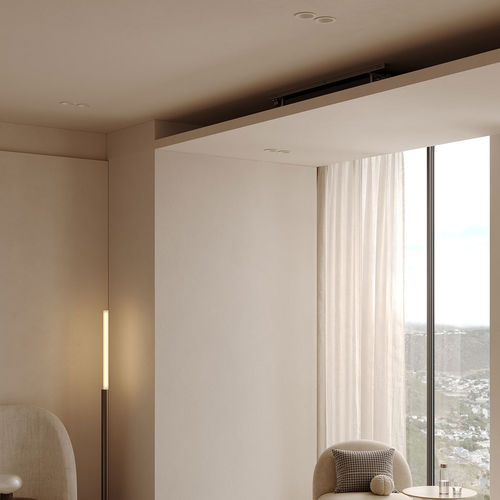

Hot water radiator CLIMA BEAM

contemporarysheet steelblack

Product overview The Clima Beam ceiling-recessed by Jaga provides noiseless, energy-efficient heating and cooling. It integrates a Low-H2O heat exchanger and is suitable for low-temperature heating and non‑condensing cooling applications.

Key features

• Supplied by default with the Jaga Dynamic Product Controller (JDPC, DPC.KB51), connected and pre-programmed.
• Installed inside the building to avoid noise emission to adjacent structures (designed for noiseless operation).
• Efficient heating at very low water temperatures; compatible with Light Cooling (non‑condensing).
• Manufacturer warranty indication: 30 years.

Standard delivery

• Low-H2O heat exchanger
• Metal support frame with consoles, electrogalvanized sheet steel
• Casing in 1.25 mm electrogalvanized sheet steel with side perforations for air inlet and outlet; scratch-resistant powder coating with high UV resistance
• Fan unit(s) 12 VDC
• JDPC Dynamic Product Controller (pre-programmed)
• Power supply: input 100-240 VAC → output 12 VDC

Composition / supplied components

• Fan unit(s) 12 VDC
• Low-H2O heat exchanger (T20 or T21)
• Mounting plate / ceiling support
• Waterproof connector
• Jaga Dynamic Product Controller
• Power supply: input 100-240 VAC, output 12 VDC

Compatible connection kits

• Kit 304
• Set 303
• Kit 299
• Kit 297
• Kit 298

Gallery & imagery A set of interior and technical images is available, showing installation examples, product internals and dimensional drawings to support specification and installation.

Technical specifications

• Product family / model name: Clima Beam (ceiling-recessed)
• Application: ceiling-recessed unit for heating and non‑condensing cooling
• Heat exchanger: Low-H2O type (T20 or T21)
• Fan units: 12 VDC fans (one or multiple depending on size)
• Controller: JDPC Dynamic Product Controller (pre-programmed)
• Power supply: 100-240 VAC (input) → 12 VDC (output) for fans and controller
• Casing material: 1.25 mm electrogalvanized sheet steel, powder coated (scratch-resistant, high UV resistance)
• Mounting: metal support frame with consoles for ceiling integration
• Connectors: waterproof connector included
• Acoustic: designed for noiseless operation inside buildings
• Cooling: suitable for non‑condensing cooling applications
• Warranty: 30 years (manufacturer information/visual)
