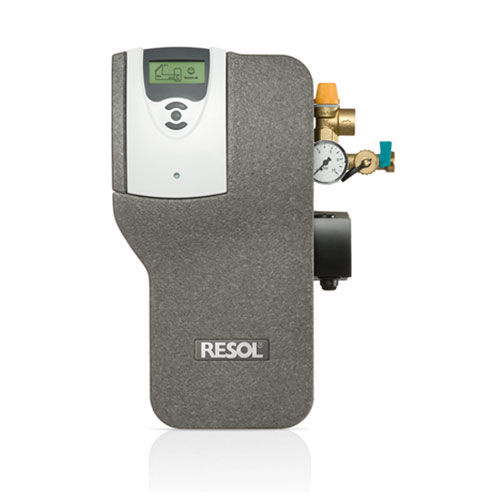

The FlowSol® S pump station is a single-line pump station and is used in the solar return. The station is available with a choice of controllers from the popular DeltaSol® BS series. The pump station is pre-assembled and contains all the vital hydraulic components for operating a solar thermal system and is particularly easy to install.
Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge
Fill and drain valves
Wall mounting bracket with fastening material
Insulated design casing
Especially suited for the pump station: our accessories such as the ALS15 discharge hose, the SBS 2000 filling and flushing station, etc.
Circulation pump: Wilo Star ST15/6 ECO (Nominal output: 49 W)
Wilo Star ST15/7 ECO (Nominal output: 53 W) – surcharge
Safety valve: max. 6 bar
Pressure gauge: 0 ... 10 bar
Flowmeter: 1 ... 10 l/min
Non-return valves: 200 mm head, openable
Connection to diaphragm-type expansion vessel: 3/4'' IT, flat sealing
Outlet safety valve: 3/4" IT
Connections to the solar pipes: 3/4" IT
Maximum pressure: max. 6 bar
Fluid: Water with max. 50 % propylene glycol
Dimensions: approx. 430 x 223 x 193 mm (with insulation)
distance centres: 100 mm
distance centre/wall: 67 mm
Material:
fittings: brass
sealings: EPDM/AFM 34
insulation: EPP foam
Maximum operation temperature: +95 °C
Non-return valve: 200 mm head, openable
Maximum temperature: +120 °C
