正方形パラソル CYGNUS

カンチレバー落ち込み型アルミニウム

Overview

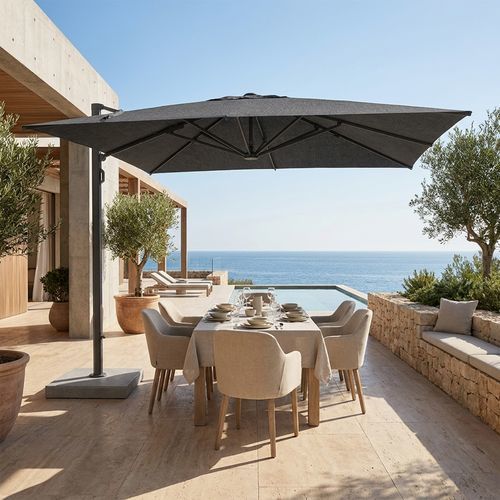

Cygnus opens nine square metres of shade with no centre pole. Push-open gas piston for effortless opening and closing from a seated position. 360° rotation via a lever at the pole base so the canopy can follow the sun while furniture underneath stays in place.

Main features

• Push-open gas piston: open and close in seconds, assisted mechanism.
• 360° rotation with lever at pole base: continuous rotation to direct shade where needed.
• Acrishade fabric 260 gsm, solution-dyed acrylic: UPF 50+, water-repellent, colour-stable season after season, certified light resistance (1,500 h grade 4).
• No centre pole: side-arm/cantilever configuration frees the area beneath the canopy (ideal for tables and lounges).
• Expandable system up to 36 m² (modular/double/quad options available).

What you can expect

• Quick, low-effort operation: the piston handles opening/closing with uniform resistance.
• Stable aluminium structure with dedicated ribs and a top airvent to relieve gusts.
• Compatibility with rechargeable LED lighting accessories (central hub under canopy) for evening use.

Accessories & upgrades

• Compatible anchoring options: fillable cantilever base (ballast), concrete anchoring plate, wooden-floor anchoring plate, in-ground anchor plate, 4-in-1 ballast base (fill with sand/water).
• Protective shaped cover available (sold separately) to keep the folded canopy protected in storage.
• Upgrade variants: Cygnus Duo (double-arm cantilever) and Cygnus Qadro (four-canopy solution) for larger continuous shade areas.

Caractéristiques / spécifications techniques

• Denomination commerciale: Cygnus
• Available sizes: 3 × 3 m (9 m² coverage)
• Canopy shape: square
• Fabric: Acrishade 260 g/m², solution-dyed acrylic, UPF 50+, water-repellent, spray test AATCC 22-2017 = 90, light resistance 1,500 h (AATCC TM 16.3-2014)
• Pole: commercial-grade aluminium, 75 × 100 × 2.5 mm
• Ribs: 8 ribs, 16 × 28 × 1.2 mm
• Arm projection from pole: 100 cm
• Opening & mechanism: gas-assisted push-open (gas piston) · assisted closing
• Rotation: continuous 360° rotation via a lever at the base of the pole (lockable)
• Heights: total open height 247 cm · headroom beneath canopy 210 cm · closed height 50 cm
• Net weight: 29 kg (gross approx. 34 kg)
• Wind resistance: up to 30 km/h (minimum recommended base ballast 120 kg)
• Lighting: central hub under canopy compatible with dedicated rechargeable LED lamps (sold separately)
• Frame finishes: Anthracite · Matt Anodizing (examples)
• Available canopy colours: Graphite · Vellum · Glacier · White · Terracotta · Wheat
• Package dimensions: 269 × 22 × 48 cm · volume approx. 0.28 m³
• Warranty: 7 years on frame · 3 years on Acrishade canopy
