正方形パラソル CYGNUS QADROカンチレバーアクリル製アルミニウム
お気に入りに追加する
商品比較に追加する
特徴
- 天幕の形
- 正方形
- 支柱のタイプ
- カンチレバー
- 材料
- アルミニウム, アクリル製, ポリエステル繊維
- 特性
- 風耐性, UVカット, 4つ, ガス式バネ付
- 開口システム
- 手動式
- 販売対象
- レストラン用, コントラクト, ホテル用, 公共スぺース用, 屋外用
- 天幕の長さ
600 cm
(236.22 in)- 天幕の幅
600 cm
(236.22 in)- 高さ
260 cm
(102.36 in)
詳細
Description

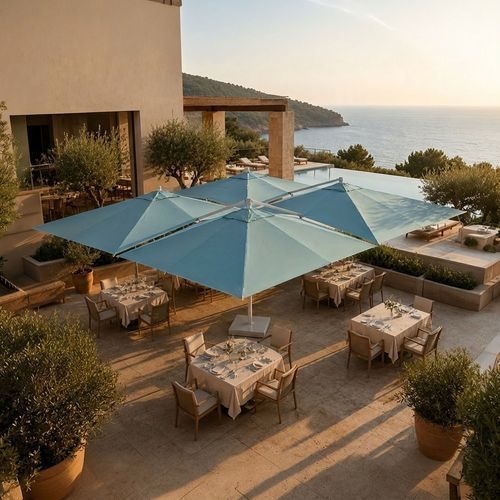

Cygnus Qadro is the cantilever parasol with four cross-shaped canopies that shades an entire space without a single pole among guests. Ideal for resort lunch service, club events, and luxury restaurant terraces.
Main features
Use cases
Designed for large hospitality venues: restaurants, resorts, clubs and event spaces where an unobstructed shaded area of 36 m² is needed.
Technical datasheet
Available sizes: 6×6 m
Opening: Push-open one-stop, gas piston assisted, independent for each of the 4 arms
Fabric: Acrishade 260 g/m², solution-dyed acrylic, UPF 50+, single airvent without flap on each panel, perimeter closing Velcro
Frame: Commercial-grade aluminium; 8 ribs per panel · 4 arms on a single upright
Wind resistance: Up to 25 km/h (minimum recommended base 100 kg ballast or fixed anchoring)
Heights: Open: 260 cm · Usable headroom beneath the panels: 210 cm
Colours and finishes: Graphite fabric (with Anthracite frame) · White fabric (with Matt Anodizing frame)
Net weight: 83.8 kg
Warranty: 7 years on frame · 3 years on fabric
Packaging & contents
Packaging: 5 separate parcels — 1 pole (295×17×17 cm) + 4 umbrella heads (242×29×17 cm each), total volume approx. 0.56 m³
Package contents: central pole, 4 arms, 4 panels, mounting accessories (complete Qadro umbrella set).
Caractéristiques / spécifications techniques
Cygnus Qadro is the cantilever parasol with four cross-shaped canopies that shades an entire space without a single pole among guests. Ideal for resort lunch service, club events, and luxury restaurant terraces.
Main features
- Four independent gas pistons: each arm opens and closes on its own.
- No pole among the tables: 36 m² coverage arranged from a single central pole.
- Acrishade 260 gsm fabric: solution-dyed acrylic, UPF 50+, blocks 98% of UV rays, with an integrated top airvent on each panel.
- Square reinforced central pole designed to withstand tension from four cantilevered arms.
- 8 aluminium ribs per panel (32 ribs in total across four panels).
- 360° rotation of the cross assembly via lever; quick push-open gas-piston assisted opening for each arm.
Use cases
Designed for large hospitality venues: restaurants, resorts, clubs and event spaces where an unobstructed shaded area of 36 m² is needed.
Technical datasheet
Available sizes: 6×6 m
Opening: Push-open one-stop, gas piston assisted, independent for each of the 4 arms
Fabric: Acrishade 260 g/m², solution-dyed acrylic, UPF 50+, single airvent without flap on each panel, perimeter closing Velcro
Frame: Commercial-grade aluminium; 8 ribs per panel · 4 arms on a single upright
Wind resistance: Up to 25 km/h (minimum recommended base 100 kg ballast or fixed anchoring)
Heights: Open: 260 cm · Usable headroom beneath the panels: 210 cm
Colours and finishes: Graphite fabric (with Anthracite frame) · White fabric (with Matt Anodizing frame)
Net weight: 83.8 kg
Warranty: 7 years on frame · 3 years on fabric
Packaging & contents
Packaging: 5 separate parcels — 1 pole (295×17×17 cm) + 4 umbrella heads (242×29×17 cm each), total volume approx. 0.56 m³
Package contents: central pole, 4 arms, 4 panels, mounting accessories (complete Qadro umbrella set).
Caractéristiques / spécifications techniques
- Coverage: 36 m² (4 panels of 9 m² each)
- Central pole section: 110 × 110 mm (square)
- Ribs: 16×28 mm (8 per panel, 32 total)
- Recommended anchoring: fixed anchoring or minimum 100 kg ballast
- Net weight (product): 83.8 kg
- Gross weight (packaged): 102.2 kg
- Total height (open): 260 cm · Height (closed): 50 cm · Usable headroom: 210 cm
- Fabric technicals: Acrishade 260 g/m², water-repellent, solution-dyed, UPF 50+
- Warranty: 7 years (frame), 3 years (fabric)
