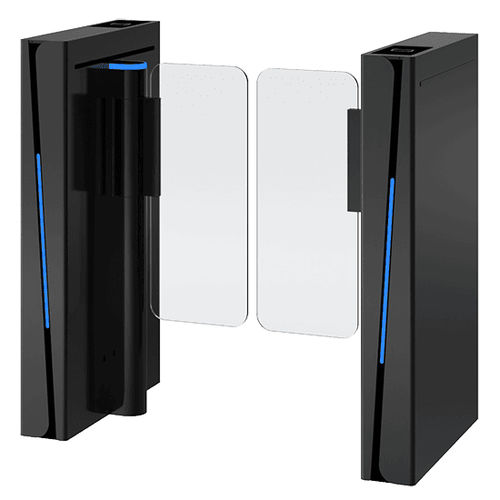

Security speed gate TTSCPR11

tempered glassaluminiumfor people with reduced mobility

Overview
A compact, cost‑effective access control lane designed to combine a modern appearance with efficient entry flow management. Suitable for gyms, corporate entrances and leisure or cultural venues. Slim anodized black aluminium cabinets optimize footprint while ensuring smooth passenger throughput.

Key features

• Compact lane: cabinets length 600 mm.
• Cabinet material: 3 mm aluminium, black satin finish.
• Passage widths: standard 650 mm (1 UP) and PMR version 900 mm.
• Wing panels: 10 mm plexiglass (safety glass optional).
• Wing height: 900 mm; floor-to-wing clearance: 245 mm.
• Opening speed: 0.5–1.5 s.
• Throughput: up to 35 people/min.
• Detection system: 6 pairs of infrared sensors.
• Noise level: <65 dB.
• Operating temperature: -20 to +70 °C.
• Power supply: 100–240 VAC 50/60 Hz; typical consumption 100 W.
• Certifications: CE / RoHS.

Details and functionality
The TTSCPR11 cabinets measure 600 mm in length, allowing installation in entrance halls with limited space. Cabinets with different passage widths (side and central units) can be combined to form contiguous rows of lanes (for example mixing 65 cm and PMR 90 cm passages). In the PMR version the wing panels measure 430 mm and, when opened, extend 130 mm on the entry or exit side—allow appropriate clearance. Central cabinets can be fitted with double-sided swing wings to create fast contiguous lanes.

Typical applications

• Gyms and leisure centres: neat entrance presentation and fast access for members carrying bags.
• Corporate entrances: compact, elegant solution for small to medium sites with limited budget or space.
• Leisure and cultural venues (pools, libraries, museums): adapted to sites where space and design are key constraints.

Specifications (table)
Characteristic — Description
Cabinet dimensions — Length 600 mm, height 980 mm, thickness 130 mm
Passage width — Standard 650 mm
PMR passage width — 900 mm
Wing height — 900 mm
Wing material — Plexiglass 10 mm, safety glass optional
Floor-to-wing clearance — 245 mm
Opening speed — 0.5–1.5 s
Throughput — Up to 35 people/min
Cabinet finish — Aluminium 3 mm, black satin
Detection system — 6 pairs of infrared sensors
Noise level — <65 dB
Operating temperature — -20 to +70 °C
Power supply — 100–240 VAC 50/60 Hz
Power consumption — 100 W
Certification — CE / RoHS

Technical characteristics

• Model: TTSCPR11
• Cabinet: 600 x 980 x 130 mm (L x H x thickness)
• Cabinet finish: aluminium 3 mm, black satin
• Standard passage width: 650 mm (1 UP)
• PMR passage width: 900 mm
• Wing height: 900 mm
• Wings: Plexiglass 10 mm (safety glass optional)
• Floor → wings clearance: 245 mm
• Opening speed: 0.5–1.5 s
• Throughput: up to 35 pers./min
• Detection: 6 pairs of infrared sensors
• Noise level: <65 dB
• Operating temperature: -20 to +70 °C
• Power supply: 100–240 VAC 50/60 Hz
• Consumption: 100 W
• Certifications: CE / RoHS
