Recessed light fixture ACTILINE4330H

hangingsurface-mountedLED

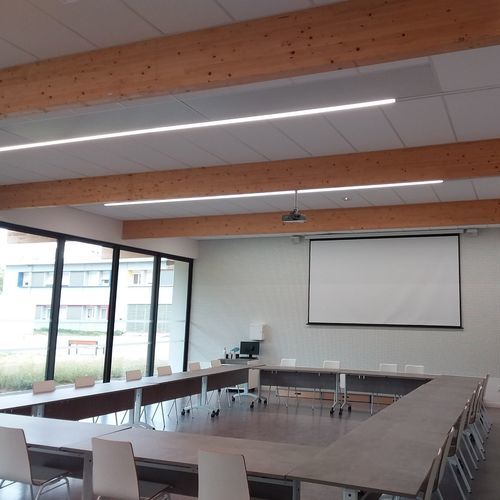

The ACTiLine4330H is a recessed linear LED luminaire designed for seamless integration into commercial spaces and architectural projects. It provides perfectly homogeneous lighting across its entire length and is available in various lengths and power outputs. Engineered for versatility, it can be connected directly to a 230V supply. Dimming is available via phase-cut (mains dimming) or DALI protocols. Multiple modules can be assembled to create continuous light lines or complex configurations with angled connectors.

Mechanical & Dimensions
- Section: 43 x 30 mm
- Available Lengths: 0.6 m / 1.2 m / 1.8 m / 2.3 m
- Weight: 0.7 kg/m

Optical & Electrical Performance
- Luminous Flux: 2600 lm/m (gray profile, 4000K, opal diffuser)
- Power Consumption: 11 W/m or 22 W/m
- Power Supply: Direct 230VAC connection (±10%), 50/60 Hz; variants available with external power supply units
- Dimming: Phase-cut (leading/trailing edge) or DALI compatible
- CRI: > 84
- Lifespan: 50,000 hours (L90B10)

Materials & Finishes
- Body: High-grade aluminum
- Finish: Standard anodized aluminum; optional black or RAL colors upon request
- Diffuser: Opal PMMA or prismatic polycarbonate

Installation & Accessories
- Mounting: Recessed installation using provided stainless steel springs
- Connectivity: Delivered with an external power supply or configured for direct 230V connection
- Compatible Accessories: Phase dimmers, DALI controllers, and corner connectors for custom geometric layouts

Options
- IP44 rating available upon request

Available Color Temperatures
- 3000K — Warm White
- 4000K — Neutral White

Certifications & Protection
- Ingress Protection (Standard): IP40
- Impact Resistance: IK05
- Electrical Class: Class I
- Origin: CE Certified / Made in France

Technical Specifications Summary
Reference : ACTiLine4330H
Dimensions : 43 x 30 mm
Lengths : 0.6 m, 1.2 m, 1.8 m, 2.3 m
Weight : 0.7 kg/m
Luminous Flux : 2600 lm/m
Power : 11 W/m or 22 W/m
Voltage : 230VAC ±10%, 50/60 Hz
Dimming : Phase-cut / DALI
CRI > 84
Lifespan : 50,000h (L90B10)
Materials : Aluminum body; Opal PMMA or Prismatic PC diffuser
Finishes : Anodized, Black, or RAL
Protection : IP40 (Standard), IP44 (Option), IK05, Class I
