Surface-mounted light fixture ACTILINE3535GM

LEDlinearIP40

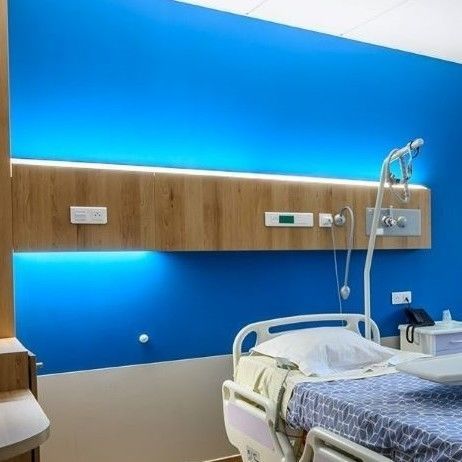

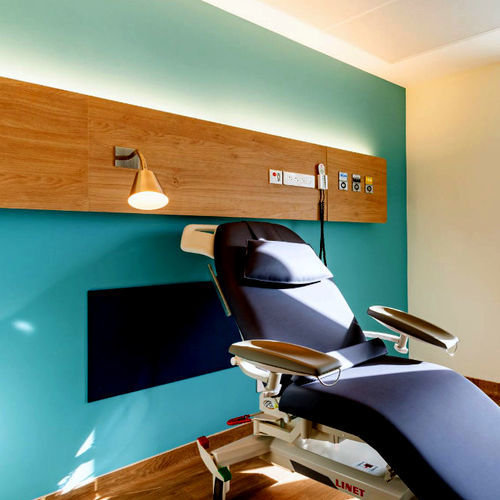

The ACTiLine3535GM is a compact LED linear luminaire (35 x 35 mm) specifically engineered for seamless, invisible integration into wooden headboard trunking. Delivering perfectly homogeneous, indirect ambient lighting (uplight), it represents the ideal solution for the healthcare and medico-social sectors.

Available in 3 standard lengths: 0.6 m, 1.2 m, and 1.8 m.

Key Benefits & Installation Flexibility

• Architectural Modularity: By combining 2 luminaires in parallel (for trunking widths > 72 mm), you can easily cover variable and continuous lengths up to over 3.5 m.
• Ideal for New Build & Renovation Projects: Perfectly tailored to meet the strict requirements of hospital rooms, clinics, nursing homes, and specialized care facilities.
• Simplified Maintenance: Tool-free mounting and dismounting thanks to a high-performance clip-in fastening system.

Technical Specifications

• Dimensions : Ultra-compact cross-section: 35 x 35 mm
• Luminous Flux & Power : High efficiency: 3,500 lm/m for 27 W/m
• Color Rendering : CRI > 84
• Color Temperatures : 3000K (Warm White) or 4000K (Neutral White)
• Power Supply & Management : Direct 230 VAC (no external driver required) | Power Factor: 0.98
• Dimming : Phase-cut / Triac (Optional: DALI Controller)
• Lifespan : 50,000 hours (L90B10) – Long-term reliability
• Protection Ratings : IP40 / IK05 | Electrical Class: Class I

Materials & Included Accessories

• Durable Materials: Anodized aluminum profile body and clear polycarbonate diffuser.
• Ready to Install: Supplied with a 1 m cable and its white quick connector.
• Bespoke Options: Customizable cable length available upon request.
• The Quality Advantage: Entirely Made in France and CE certified.
